PRIMAX VENUS 3200 Off Grid Solar Inverter 3.2KW 24V MPPT
₨ 95,000 Original price was: ₨ 95,000.₨ 74,999Current price is: ₨ 74,999.

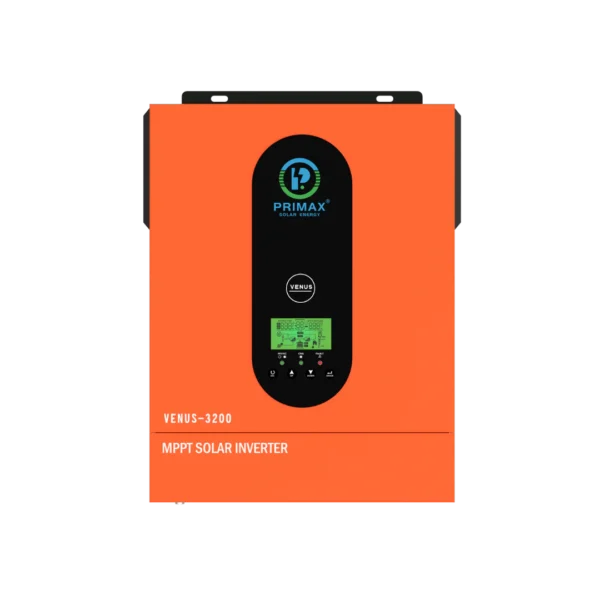

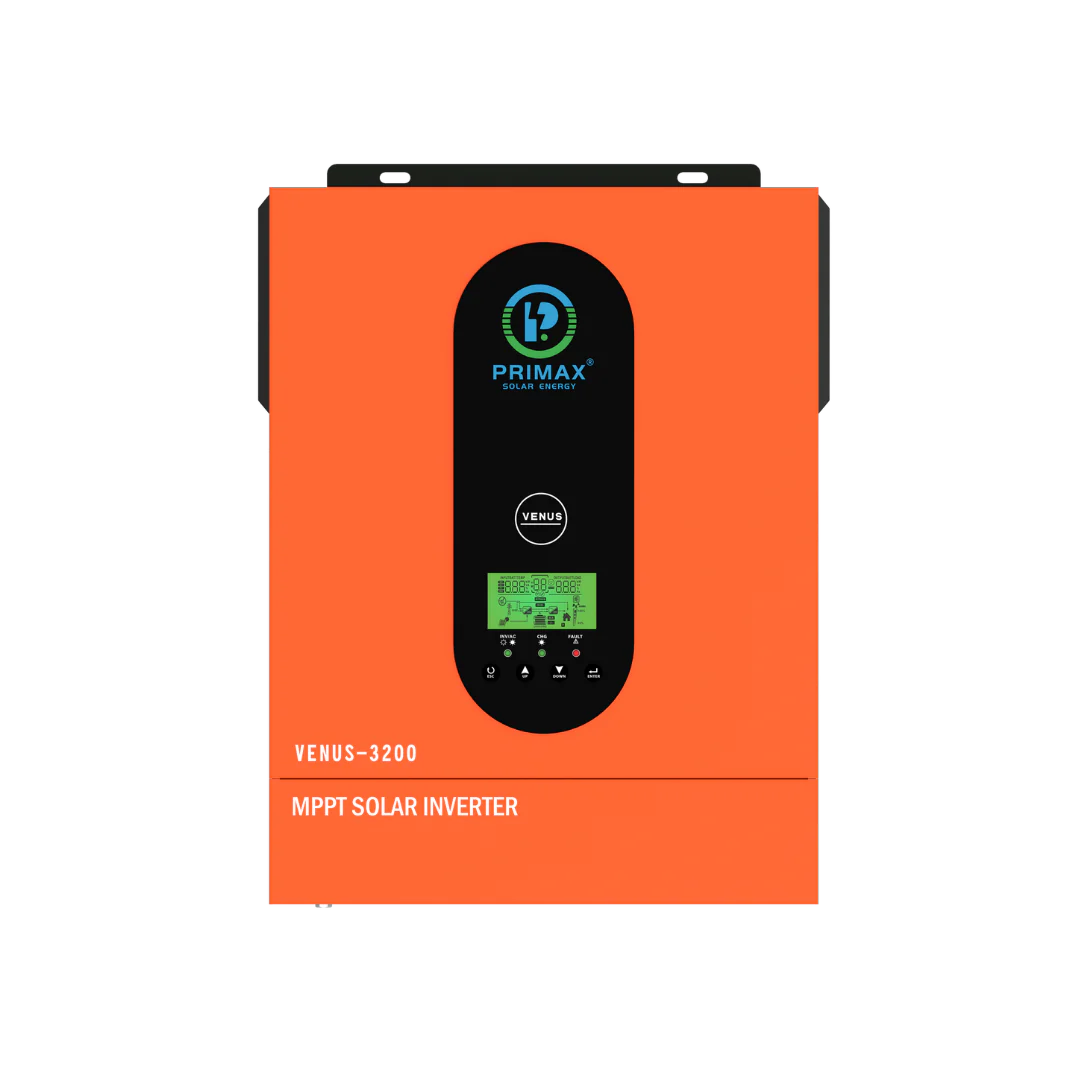

PRIMAX VENUS 3200 Off Grid Solar Inverter 3200W 24V MPPT
A reliable and compact hybrid solar inverter designed for small-scale off-grid or grid-connected solar systems. This model offers efficient power management and integration with both lithium batteries and solar panels for enhanced energy use.
Key Features
- Pure Sine Wave Output: Delivers stable, high-quality power ideal for sensitive equipment and appliances.
- Wi-Fi & GPRS: Available for mobile monitoring via iOS and Android apps, providing real-time tracking and control of your system.
- 80A MPPT Solar Charge Controller: Built-in MPPT controller for efficient solar energy conversion, ensuring maximum power generation.
- Anti-Dust Kit: Built-in protection for harsh environments, improving durability and system longevity.
- Smart Battery Charger Design: Optimizes battery life through intelligent charging, extending battery lifespan and enhancing performance.
- Customizable Options: Meets a variety of customized system requirements for more flexibility in installation.
- Lithium Battery Compatibility: Supports integration with lithium batteries for reliable energy storage.
- Solar Power Priority: Directly powers the load from solar energy first, ensuring optimal use of available renewable energy.
The PRIMAX VENUS 3200 Off Grid Solar Inverter is a versatile and efficient solution for small residential or commercial solar installations, providing high-quality power and intelligent energy management.
Download PDF
| AC INPUT | 3200VA/3000W |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(For PC) |
| 90-280VAC(For Home Appliances | |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| AC OUTPUT | |
| AC Voltage Regulation | 230VAC+5% |
| Surge Power | 6400VA |
| Efficiency(Peak)PV to INV | 98% |
| Efficiency(Peak)Battery to INV | 94% |
| Transfer Time | 10ms (For PC);20ms(For Home |
| Appliances) | |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| Maximum AC Charge Current | 60A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 3000W |
| MPPT Range@ Operating Voltage | 30-400VDC |
| Maximum PV Array Open Circuit Voltage | 400VDC |
| Maximum Charging Current | 80A |
| PHYSICAL | |
| Dimension D*W*H(mm) | 357*273*95 |
| Net Weight(kgs) | 5 |
| Communication interface | RS232/GPRS/WIFI |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non Condensing) |
| Operating Temperature | -10-50oC |
1 review for PRIMAX VENUS 3200 Off Grid Solar Inverter 3.2KW 24V MPPT
