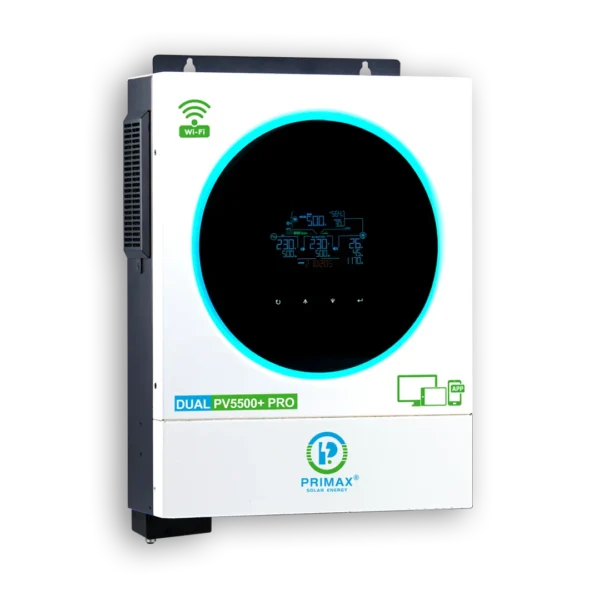

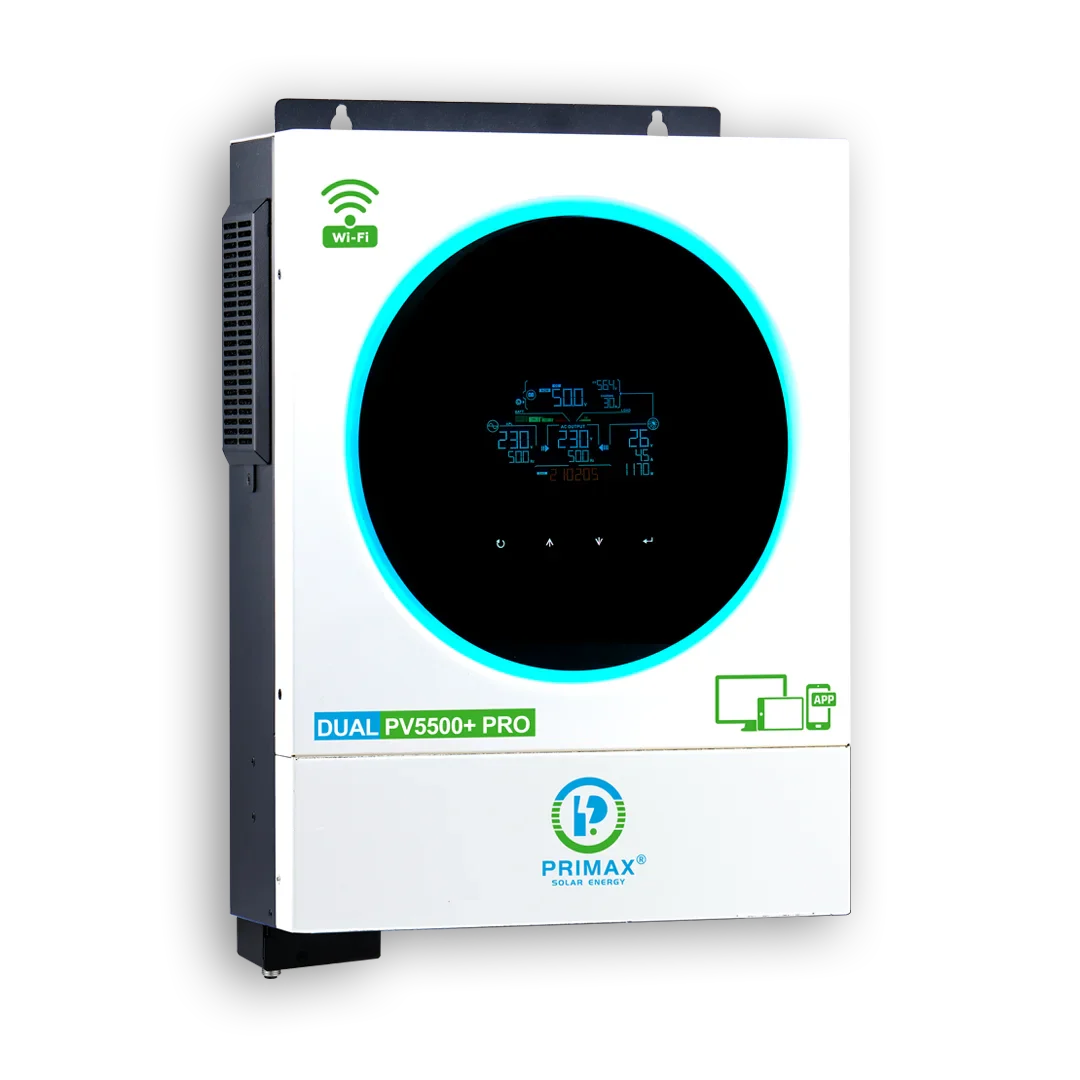

PRIMAX GALAXY DUAL PV5500+ PRO Hybrid Solar Inverter 4KW
A cutting-edge hybrid solar inverter offering advanced features for efficient energy management, smart load handling, and comprehensive system monitoring. Ideal for residential and small commercial installations.
Key Features
- Dual Output: Smart load management ensures efficient power distribution.
- High PV Input Capacity: Supports up to 5,500W with a maximum input current of 27A for robust solar energy intake.
- Wide PV Input Range: Operates seamlessly within 60VDC~450VDC, compatible with various solar panels.
- MPPT Solar Charge Controller: 5.5KW MPPT ensures maximum solar power tracking efficiency.
- User-Friendly Design: Features a touchable button interface and a large 4.3″ colored LCD for easy operation.
- Customizable RGB LED Ring: Status indicators can be personalized with RGB lighting.
- Built-in WiFi: Enables mobile monitoring and control via Android/iOS app.
- USB On-the-Go Support: Allows easy access to data and updates.
- Advanced Communication: Reserved ports (RS485, CAN-BUS, RS232) for Battery Management System integration.
- Smart Battery Management: Includes a battery equalization function to extend battery life and performance.
- Maximum Charging Current: Supports up to 120A for fast and efficient charging.
- Grid Interaction: Offers feed-in to the grid while maintaining storage backup.
- Durable Build: Built-in anti-dust kit ensures reliable performance in harsh environments.
- Data Logging: Event logs are stored directly in the inverter for easy diagnostics and monitoring.
The PRIMAX GALAXY DUAL PV5500+ PRO delivers powerful performance, intelligent management, and modern features, making it a top-tier choice for sustainable energy solutions.
| RATED POWER | 4000VA/4000W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-10% |
| Surge Power | 8000VA |
| Efficiency (Peak) | 90% ¬ 93% |
| Transfer Time | 15ms (For Personal Computers)
20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV Array Power | 5500W |
| MPPT Range@ Operating Voltage
Maximum PV Input Current |
60¬450VDC
27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension D*W*H(mm)
Net Weight (Kgs) |
119 x 313.6 x 457.5
10 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -10°C to 60°C |
