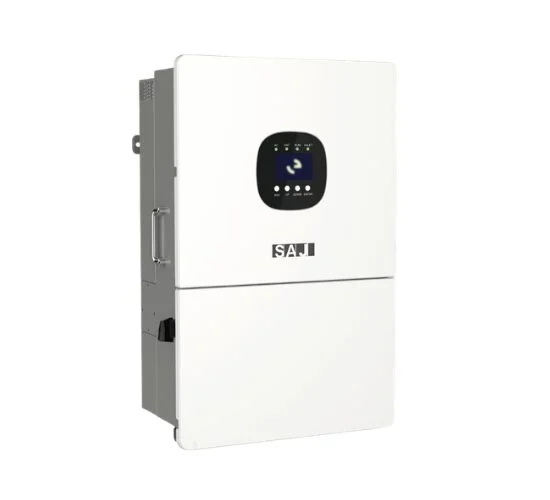

Saj 20Kw Hybrid Inverter 3P LV Ip66
Original price was: ₨ 660,000.₨ 640,000Current price is: ₨ 640,000.
-
Saj 16Kw Hybrid Inverter ip66
Saj 20Kw Hybrid Inverter 3P LV Ip66
Original price was: ₨ 660,000.₨ 640,000Current price is: ₨ 640,000.
SAJ H2-20K-LT2 Hybrid Solar Inverter – Specifications
General Information
-
Brand: SAJ
-
Model: H2-20K-LT2
-
Type: Hybrid Inverter / Charger
-
Output Type: Hybrid (On-Grid & Off-Grid)
Performance
-
Rated Output Power: 20,000 W (20kW)
-
Max PV Input Power: 32,000 W (32kW)
-
Max Efficiency: 98.5%
-
Euro Efficiency: 98.0%
-
Peak Off-Grid Power: 40,000 W (10 seconds)
-
Max AC Output Backup: 20,000 VA
Input Specifications
-
Battery Input Voltage: 40 – 60 V DC
-
PV Input Voltage Range: 160 – 950 V DC
-
MPPT Voltage Range: 160 – 950 V
Output Specifications
-
Output Voltage: 220/380 V, 230/400 V AC
-
Output Current:
-
Rated: 30.3 A
-
Maximum: 33.4 A
-
-
Output Frequency: 50 / 60 Hz
Battery Specifications
-
Max Battery Charging Current: 350 A
System Features
-
Max Parallel Units: 10 Inverters
-
Total Harmonic Distortion (THDi): < 3%
Physical Details
-
Dimensions: 740 × 470 × 270 mm
-
Weight: 53 kg
