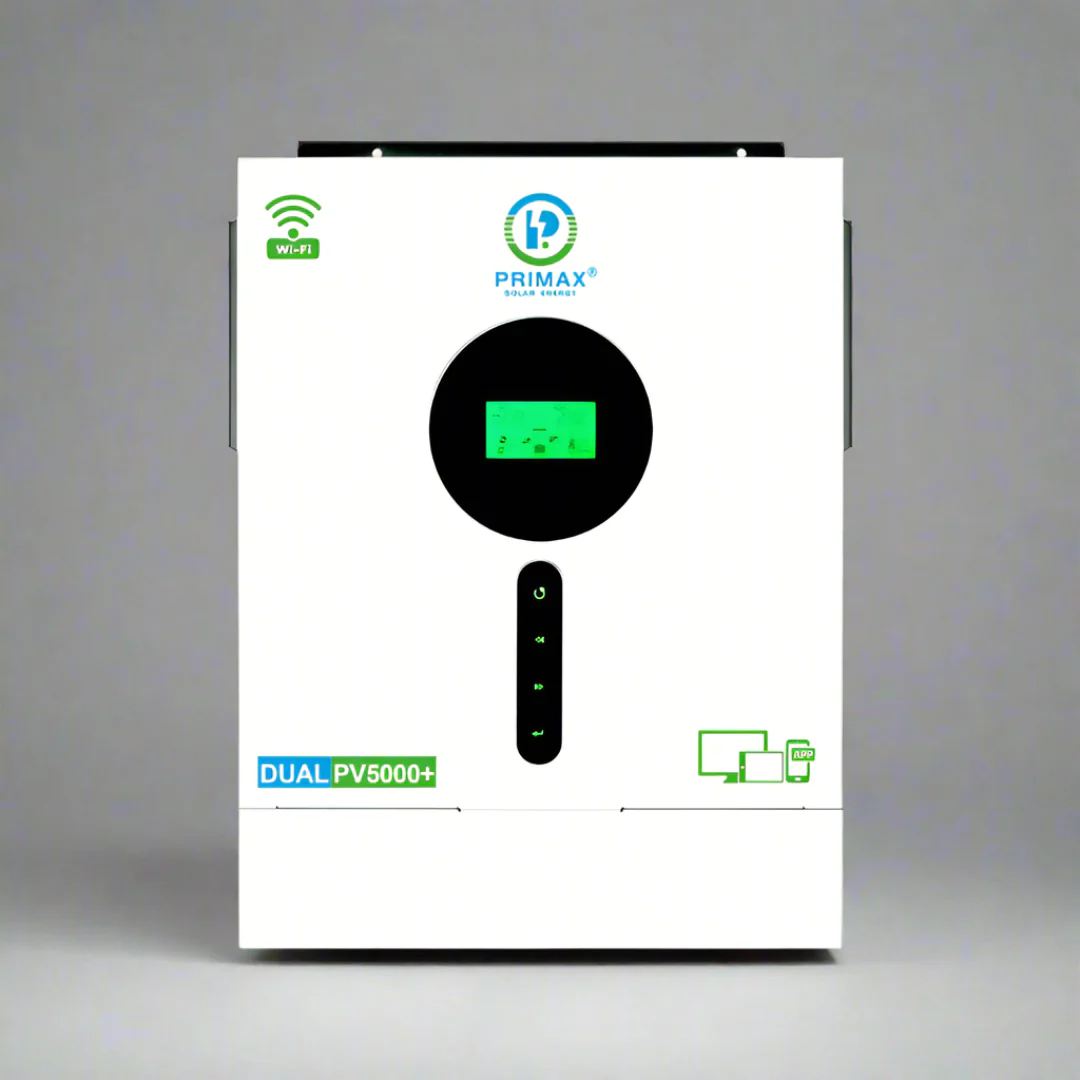

PRIMAX GALAXY PV5000+ Hybrid Solar Inverter 3.6KW with 5000W MPPT Solar Charge Controller
The PRIMAX GALAXY PV5000+ is a versatile hybrid solar inverter designed for efficient power management in both off-grid and grid-connected systems. With smart load management, advanced charging capabilities, and seamless integration with battery storage, it is well-suited for residential or small commercial solar installations.
Key Features
- Dual Output for Smart Load Management: Enables the distribution of energy to multiple loads, allowing efficient energy use and improved system flexibility.
- Maximum PV Input Current 27A: Supports high-efficiency energy conversion with a large current input capacity for optimal solar power generation.
- Wide PV Input Voltage Range 60VDC~450VDC: Compatible with a wide variety of solar panel setups, offering design flexibility for different configurations.
- Built-in Wi-Fi for Mobile Monitoring: Provides remote access and monitoring of the system via a mobile app (available for Android/iOS), allowing you to track performance in real time.
- Reserved Communication Port for BMS: Supports integration with Battery Management Systems (BMS) through communication ports (RS485, CAN-BUS, or RS232).
- Maximum Charging Current 120A: High charging capacity ensures efficient battery charging and optimized performance for energy storage.
- Battery Independent Design: The inverter can function without a battery, offering flexibility in energy management and system configuration.
- Feed-in to the Grid with Storage Backup: Allows energy to be fed back into the grid while maintaining backup storage, ensuring uninterrupted power supply.
- Battery Equalization Function: Optimizes battery performance and extends the battery life cycle by balancing charge across the cells.
- Built-in Anti-Dust Kit: Designed to withstand harsh environmental conditions, providing added protection against dust and debris.
- Maximum AC Output 3600W: Provides reliable AC power for running multiple household or commercial loads.
The PRIMAX GALAXY PV5000+ Hybrid Solar Inverter 3.6KW is a powerful, flexible solution for energy systems that require both solar and storage integration, offering advanced features for efficient energy management and long-term system reliability.
Download PDF
| RATED POWER | 3600VA/3600W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-10% |
| Surge Power | 7200VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers)
20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV Array Power | 5000W |
| MPPT Range@ Operating Voltage
Maximum PV Input Current |
90¬450V DC
27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension D*W*H(mm)
Net Weight (Kgs) |
107*322.6*420.3
9.5 |
| Communication Interface | USB/RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Operating Temperature | -10¬50C |
| Storage Temperature | -15¬60C |
