CNC YCB8-63PV 2P 500V DC MCB Solar Mini Circuit Breaker
₨ 2,500 Original price was: ₨ 2,500.₨ 1,950Current price is: ₨ 1,950.

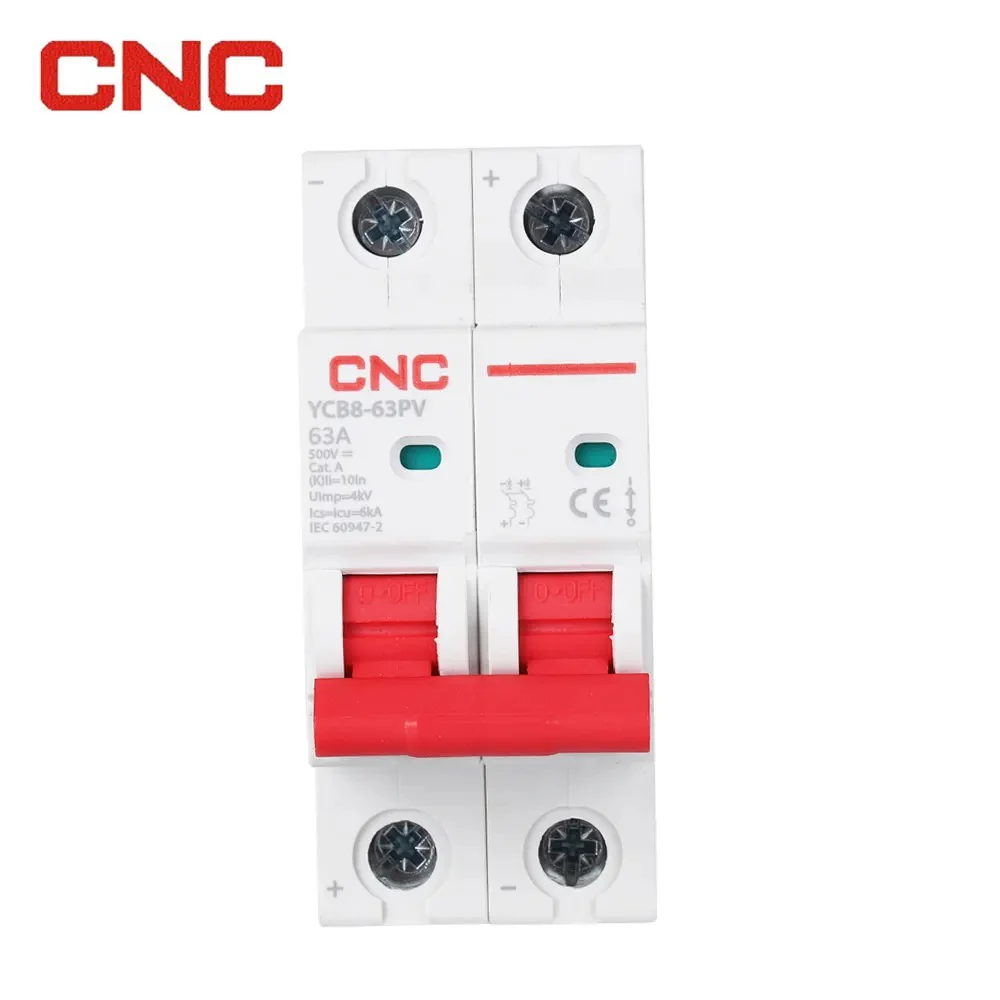

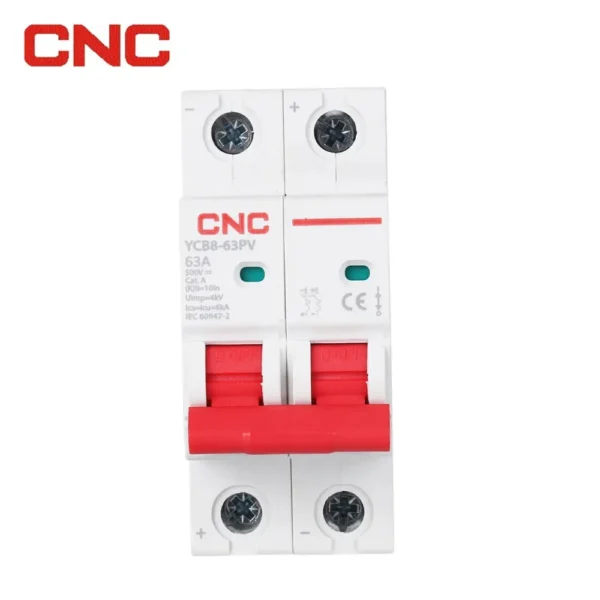

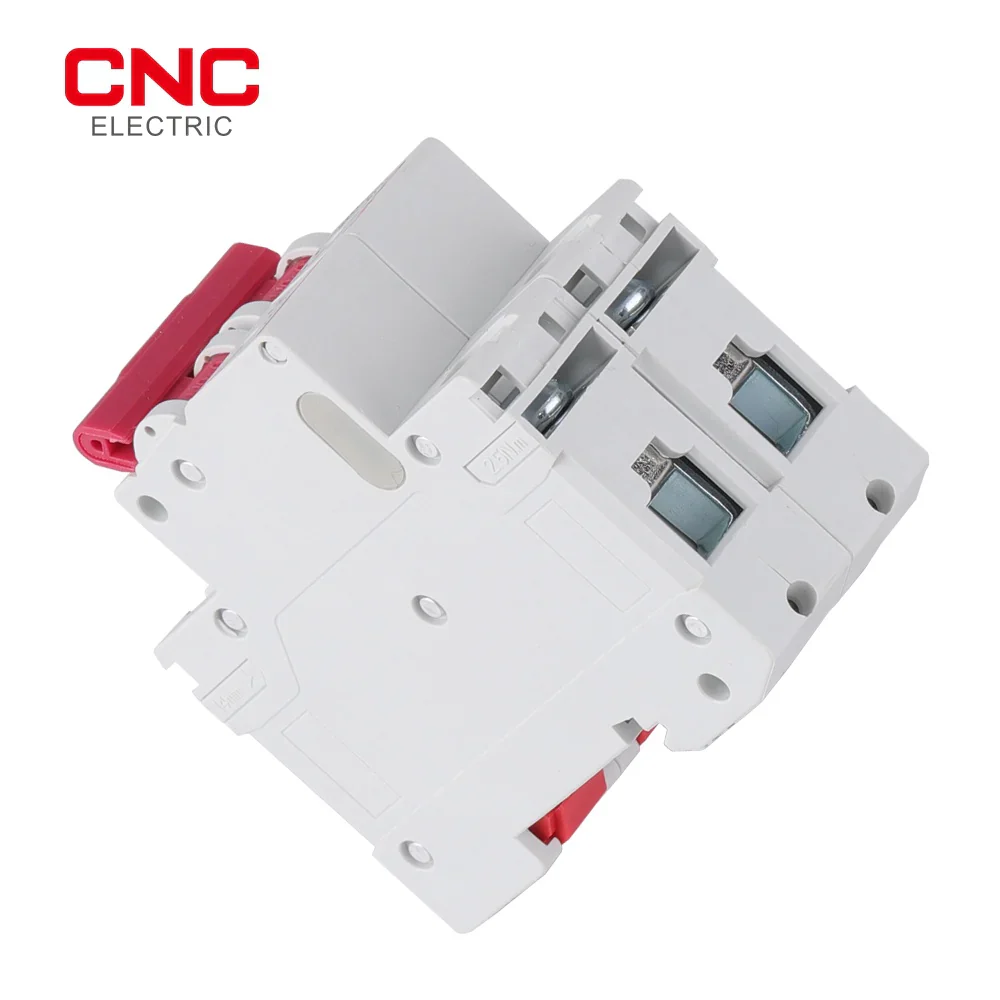

CNC YCB8-63PV 2P 500V DC MCB Solar Mini Circuit Breaker
The CNC YCB8-63PV 2P 500V DC MCB Solar Mini Circuit Breaker is a reliable and efficient protection device designed for use in solar power systems. With a maximum voltage of 500V and 2 poles, it provides superior protection against overloading and short circuits, ensuring the safe operation of your solar electrical setup.
Key Features:
- Type: YCB8-63PV
- Product Name: 18mm DC Miniature Circuit Breaker
- Number of Poles: 2P (Two Poles) for protecting both conductors
- Rated Voltage: 500V DC, suitable for high-voltage solar applications
- Breaking Capacity: 6kA, providing robust protection against fault currents
- Tripping Curve: 8-12In, offering precise response to overcurrent conditions
- Standard Compliance: Meets IEC/EN 60898-1 for safety and reliability
- Certificates: CE, EAC certified
Benefits:
- Reliable Protection: Offers reliable protection against overloads and short circuits in solar power systems and DC circuits.
- High Breaking Capacity: With a 6kA breaking capacity, it ensures that fault currents are safely interrupted.
- Compact and Efficient: The 18mm width design allows easy installation without occupying excessive space in electrical panels.
- International Compliance: Certified with CE and EAC for quality assurance, making it suitable for use in a wide range of markets.
- Tripping Curve: The 8-12In tripping curve ensures an effective response to overcurrent situations, providing a safe and efficient protection system.
Applications:
- Solar Power Systems: Protects solar panel circuits, inverters, and battery banks from overcurrent conditions.
- DC Electrical Circuits: Ideal for other DC applications where reliable overcurrent protection is required.
- Residential and Commercial Solar Installations: Suitable for both small and large-scale solar systems.
Specifications:
- Type: YCB8-63PV
- Product Name: 18mm DC Miniature Circuit Breaker
- Poles: 2P
- Rated Voltage: 500V DC
- Breaking Capacity: 6kA
- Tripping Curve: 8-12In
- Standard: IEC/EN 60898-1
- Certification: CE, EAC
Conclusion:
The CNC YCB8-63PV 2P 500V DC MCB Solar Mini Circuit Breaker is an essential component for protecting your solar power system and DC circuits. Its high breaking capacity, compact design, and certifications make it a reliable and efficient solution for ensuring the safe and uninterrupted operation of your solar electrical systems.
