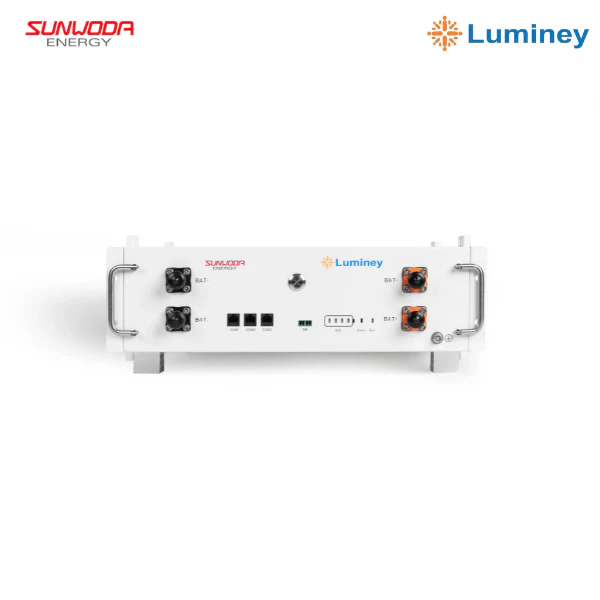

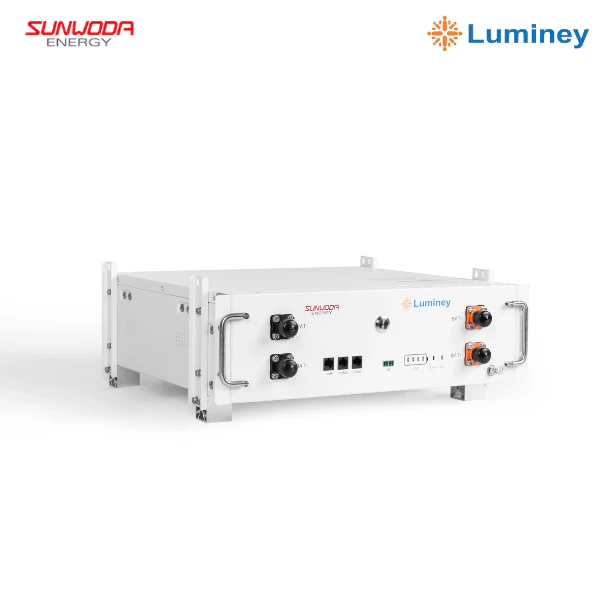

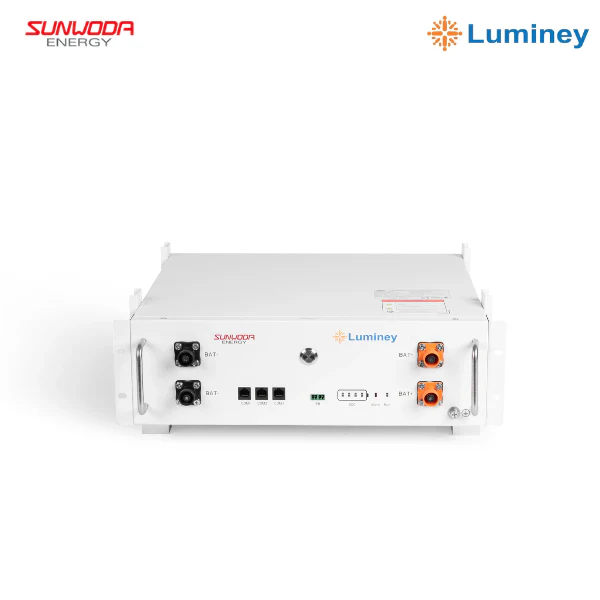

Luminey Atrix-5 5kWh 51.2V 100Ah Lithium-ion Battery 51.2V
Original price was: ₨ 268,000.₨ 259,999Current price is: ₨ 259,999.
Atrix Lithium-ion Series
The Atrix-5 delivers a solid 5 kWh of usable energy, ideal for powering small residential or backup systems. Compact yet powerful, this model ensures uninterrupted power with superior efficiency.
Key Features
- 6000 Life Cycles: Ensures long-lasting performance with up to 6000 charge/discharge cycles.
- Rated Charge/Discharge (0.5C/1C): Efficient energy storage and release for reliable operation.
- Max Charge/Discharge (1C/1C): Handles peak power demands effectively.
- 100% Depth of Discharge (DOD): Utilize full battery capacity without compromising lifespan.

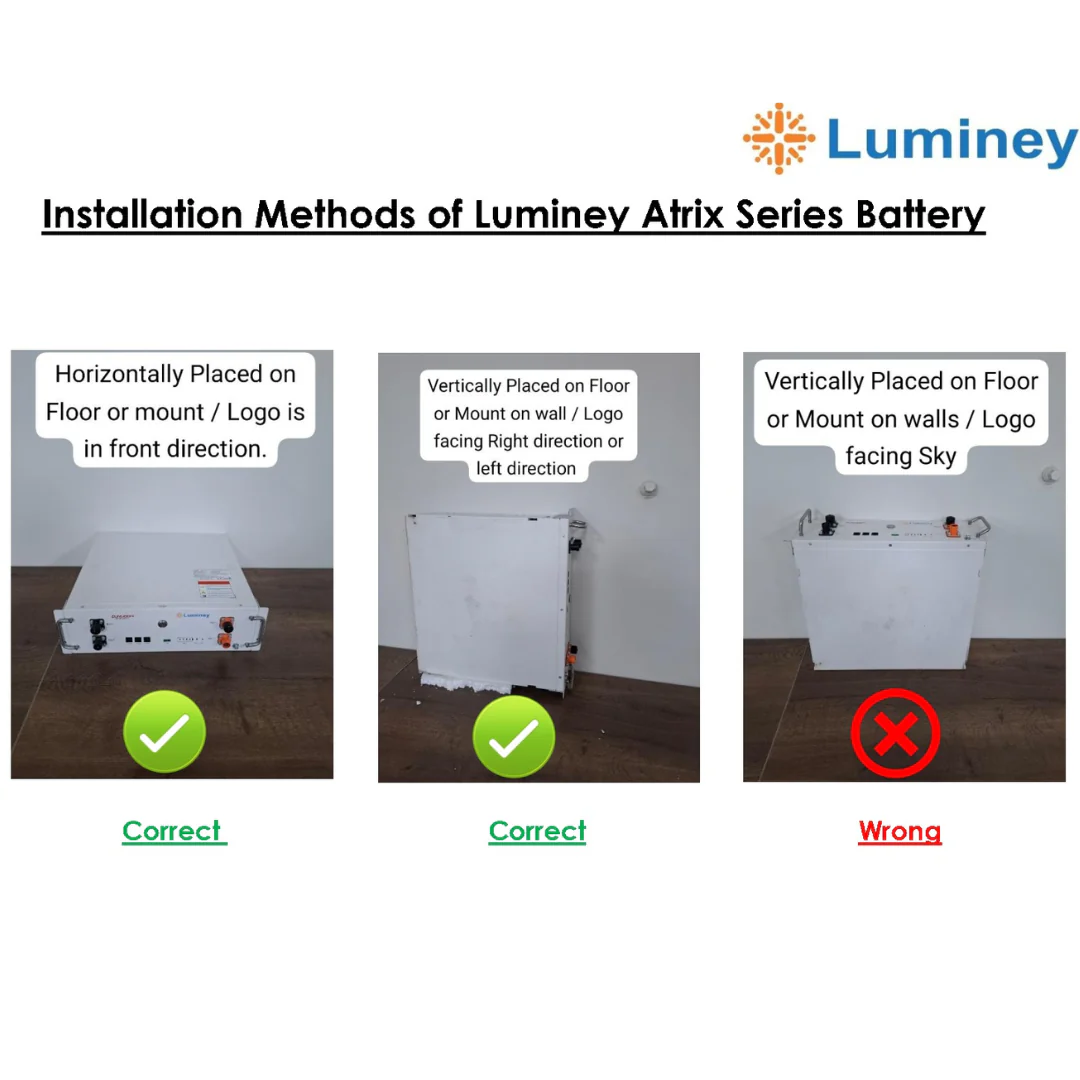

- Flexible Installation: Supports both wall mount and rack mount options for versatile setups.
- 5-Year Warranty: Backed by a comprehensive 5-year warranty for peace of mind.
- Built-in Flexible Battery Rack: Designed for easy scalability and space efficiency.
- LiFePO4 Battery Type: Provides superior safety, longevity, and performance.
- Anti-Expansion Design: Prevents swelling and enhances battery durability.
- Built-in Heater: Ensures optimal performance even in low-temperature conditions.
- Quick Plug & Unplug DC Terminal: Simplifies installation and maintenance with hassle-free connections.
- Complete Accessories: Includes communication cables and DC wires for a seamless setup.
- Inverter Compatibility: Works with leading brands like Inverex, Solar Max, Knox, Solis, and Growatt (CAN 0.2, RS485).
Specifications
| Model | Atrix-5 |
| Nominal Energy | 5kWh |
| Usable Energy (100% DOD) | 5kWh |
| Rated Voltage | 51.2V |
| Charge/Discharge Cut Off Voltage | 44.8V~55.2V |
| Roundtrip Efficiency | >98% |
| Rated Charge/Discharge Current | 50A/50A |
| Max. Charge/Discharge Current | 100A/100A |
| Communication Interface | CAN 2.0/RS485 |
| Scalability | Max. 24 in parallel, Max. 120 kWh |
| Installation Location | Indoor |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | -22°F to 140°F (-30°C to 60°C) |
| Humidity | 10% to 90%, non-condensation |
| Dimensions | 482*135*433/Pack (W*H*D, mm) |
| Weight | 45kg |
| Enclosure Protection Rating | IP20 |
| Altitude | <2000m |
| Cooling | Natural Convection |
| Certificates | IEC62619/CE/CEI 0-21/UL1973 FCC/UL9540A/UN38.3 |
