MaxPower Voltas PV9000 IP65 6K-H4 6KW Single Phase Hybrid Inverter
₨ 355,000 Original price was: ₨ 355,000.₨ 284,999Current price is: ₨ 284,999.

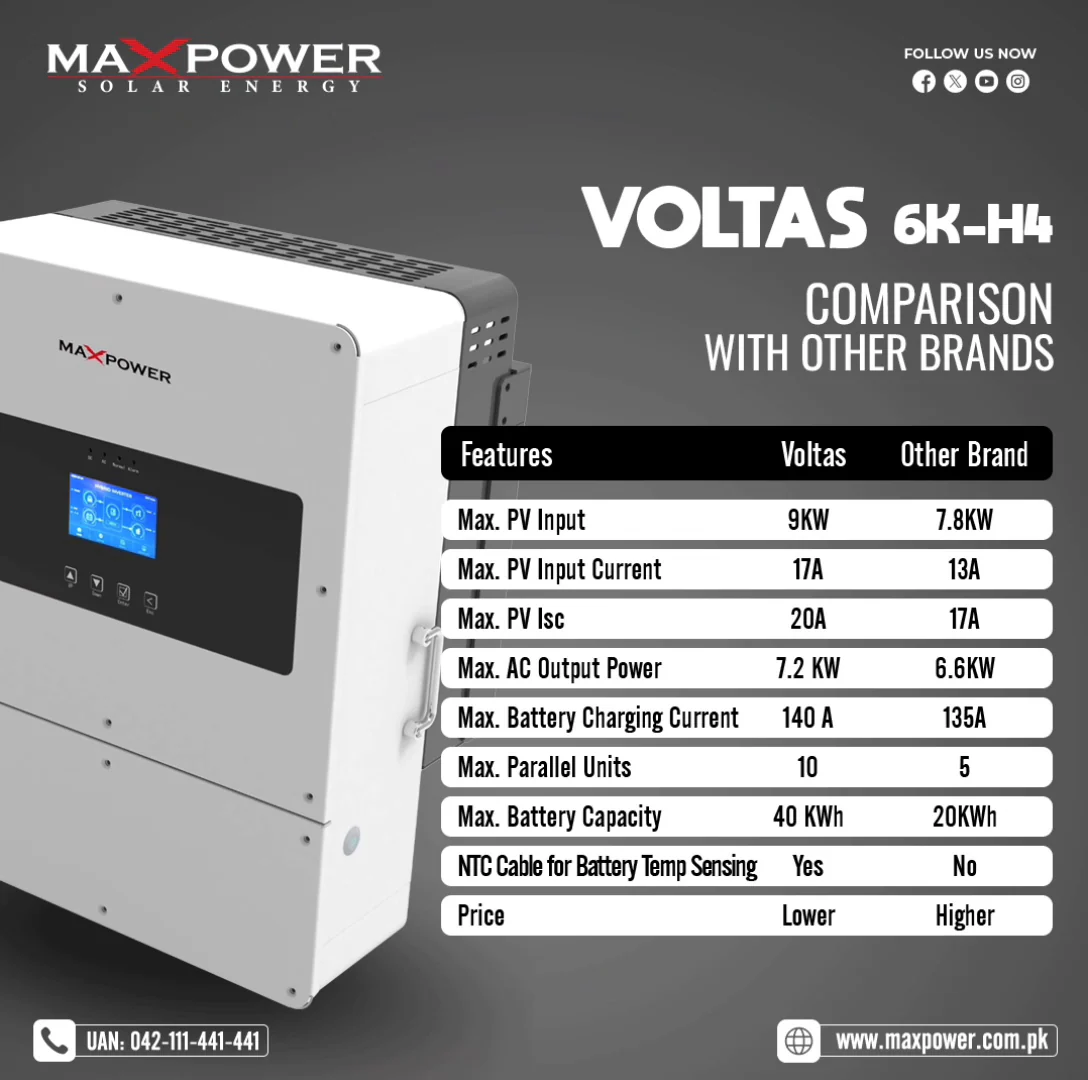

MaxPower Voltas PV9000 IP65 6K-H4 Single Phase Hybrid Inverter
The MaxPower Voltas 6K-H4 is a high-efficiency single-phase hybrid inverter with 6KW output power and 9,000W PV capacity. Designed with an IP65-rated enclosure, it ensures protection against dust and water, making it suitable for both indoor and outdoor installations. This inverter is perfect for residential or small commercial applications, offering reliable solar energy conversion and battery integration.
Key Features
- 6KW Rated Output: Ideal for residential or small commercial systems requiring steady power supply.
- 9,000W PV Capacity: Supports a wide range of PV setups for maximum energy generation.
- Digital Touch Display: Provides a user-friendly interface for easy monitoring and control.
- IP65 Enclosure: Provides excellent dust and water resistance, making it suitable for outdoor installations.
- Dual MPPT Trackers: Increases energy yield by managing multiple solar panel arrays independently.
- Battery Compatibility (Lead-acid/Li-Ion): Supports both battery types, with lithium-ion batteries benefiting from self-adapting charging strategies.
- High Efficiency (97.9%): Minimizes energy loss, ensuring more effective solar energy conversion.
- Smart Cooling: Optimizes inverter performance while maintaining noise levels under 45 dB.
- Multiple Protection Features: Includes overload protection, reverse current protection, insulation resistance detection, and more.
Additional Details
- Surge Power: Capable of delivering twice the rated output for 10 seconds during off-grid mode to meet peak demands.
- AC Output: 6,000W rated output with a maximum of 7,200W, ensuring the inverter can power various appliances efficiently.
- Grid Compliance: Complies with international grid regulations including CEI 0-21, IEC 61727, and more.
- Communication with BMS: Features CAN and RS485 communication for remote monitoring and integration with Battery Management Systems (BMS).
- Warranty: Includes a 5-year parts replacement warranty for peace of mind.
The MaxPower Voltas 6K-H4 is a powerful, efficient, and versatile inverter that delivers reliable solar power for homes and small businesses, with advanced features for optimal performance and long-term operation.
| Model | Voltas-6K-H4 | Voltas-8K-H4 |
| Battery Input Data | ||
| Battery Type | Lead-acid or Li-Lon | |
| Battery Voltage Range (V) | 40-60 | |
| Max. Charge Current (A) | 140 | 190 |
| Max. Discharge Current (A) | 140 | 190 |
| Charging Curve | 3 Stages/Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li-Ion Battery | Self-Adaption to BMS | |
| PV string Input Data | ||
| Max. DC Input Power (W) | 9,000 | 12,000 |
| PV Input Voltage (V) | 370 (125-500) | |
| MPPT Range (V) | 150-425 | |
| Start-up Voltage (V) | 120 | |
| PV Input Current (A) | 17+17 | 26+26 |
| Max. PV Isc (A) | 20+20 | 34+34 |
| No. of MPPT Trackers | 2 | 2 |
| No. of String Per MPPT Tracker | 1+1 | 2+2 |
| AC Output Data | ||
| Rated AC Output Power and UPS Power (W) | 6,000 | 8,000 |
| Max. AC Output Power (W) | 7,200 | 9,600 |
| Peak Power (off grid) | 2 times of rated power, 10s | |
| AC Output Rated Current (A) | 27.3/26.1 | 34.5/33 |
| Max. AC Current (A) | 30/28.7 | 40/38.3 |
| Max. Continuous AC Passthrough (A) | 40 | 50 |
| Power Factor | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz,220/230Vac (single phase) | |
| Grid Type | single phase | |
| Current Harmonic Distortion | THD<3% (Linear load <1.5%) | |
| Efficiency | ||
| Max. Efficiency | 97.90% | |
| Euro Efficiency | 96.90% | |
| MPPT Efficiency | 99.90% | |
| Protection | ||
| Integrated | PV Input Lightning Protection, Resistor Detection, Residual Current Anti-islanding Monitoring Protection, PV String Unit, Output Over Input Reverse Current Protection, Polarity Protection, Insulation Output Shorted Protection | |
| PV ARC Fault Detection | Optional | |
| Output Over Voltage Protection | DC Type II/AC Type lll | |
| Certification and Standards | ||
| Grid Regulation CEI 0-21,VDE-AR-N | 4105,NRS 097, IEC61727,G99,G98, VDE 0126-1-1,RD 1699,C10-11 | |
| EMC/Safety Regulation IEC/EN 62109-1 IEC/EN 62109-2, | IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
| General Data | ||
| Operating Temperature Range (°C) | -45-60, 45 Derating | |
| Cooling | Smart cooling | |
| Noise (dB) | <45 | |
| Communication with BMS | CAN, RS485 | |
| Weight (kg) | 34 | |
| Dimensions (mm) | 567W×467H×292D | |
| Protection Degree | IP65 | |
| Installation Style | Wall-mounted | |
| Warranty | 5 Years | |
