JVCO 14in1 100A Bidirectional WIFI Smart Meter with Monitoring and Protection
₨ 12,999 Original price was: ₨ 12,999.₨ 8,999Current price is: ₨ 8,999.

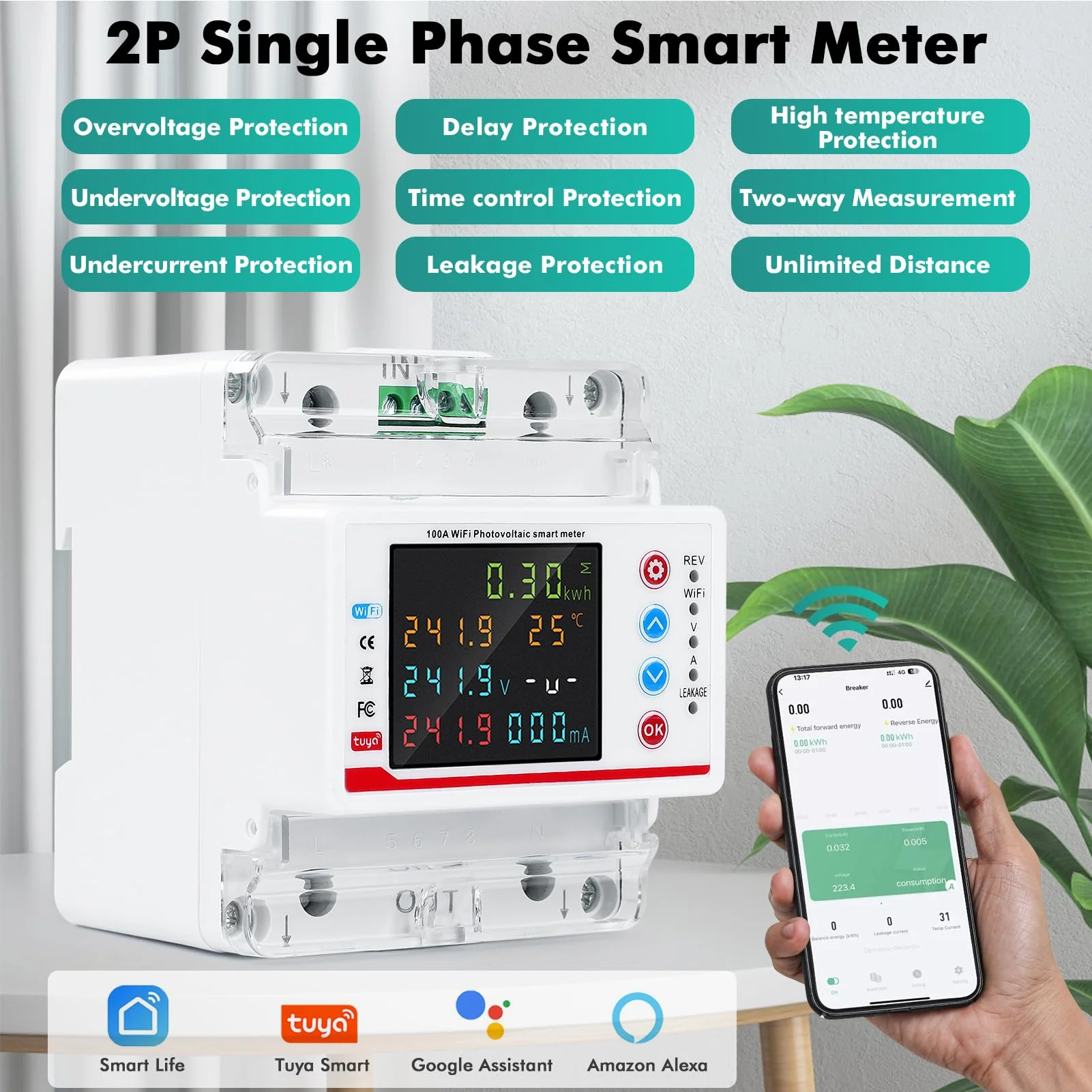

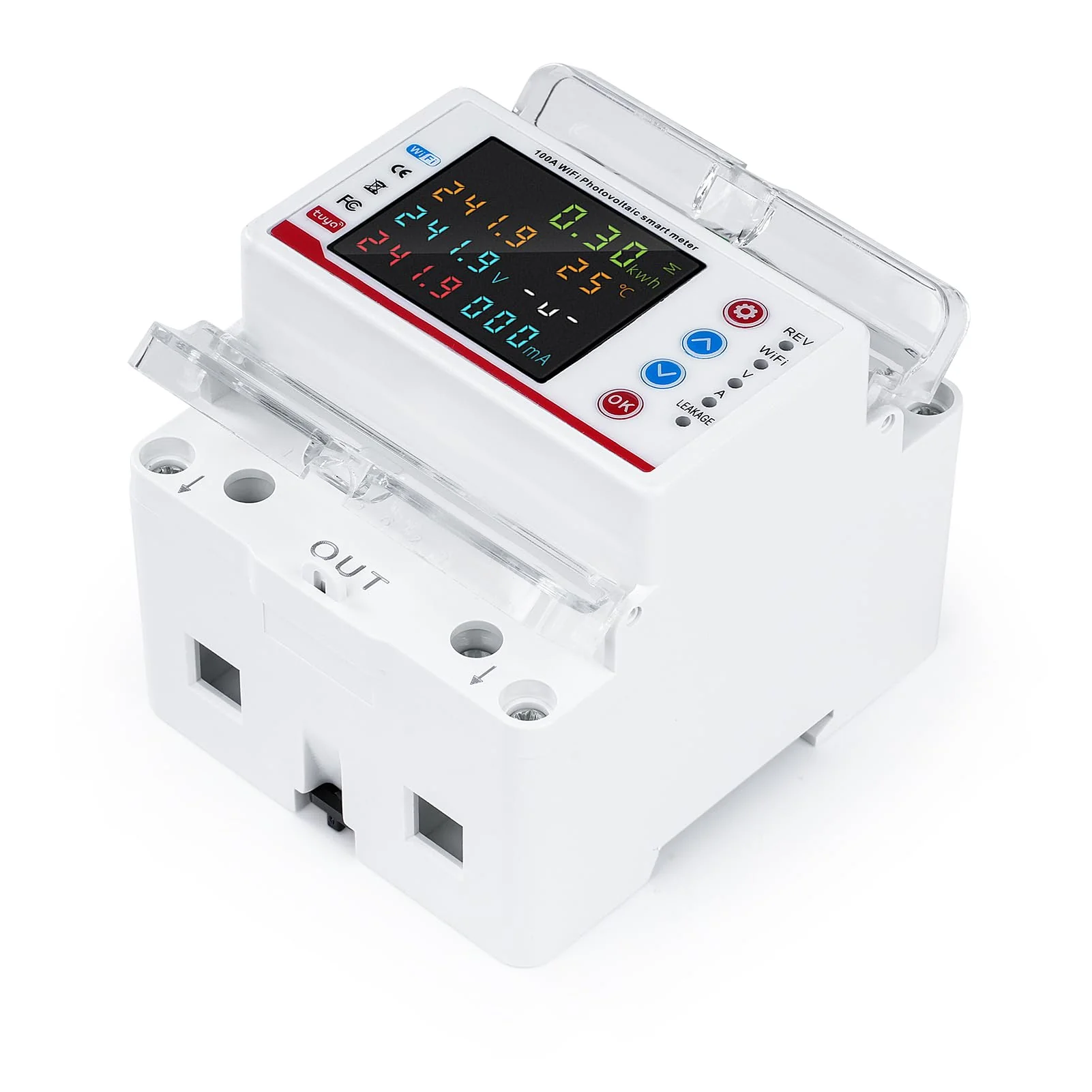

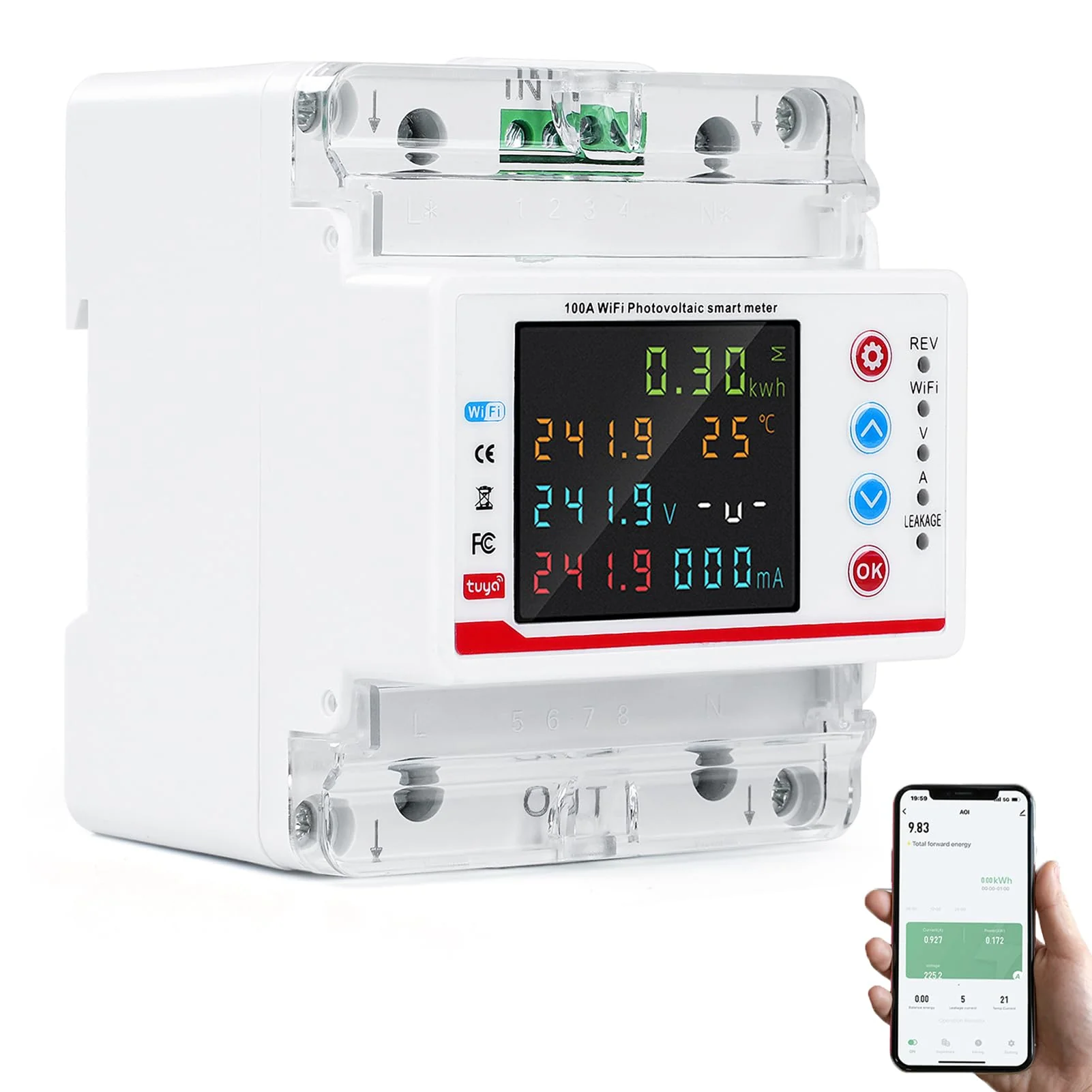

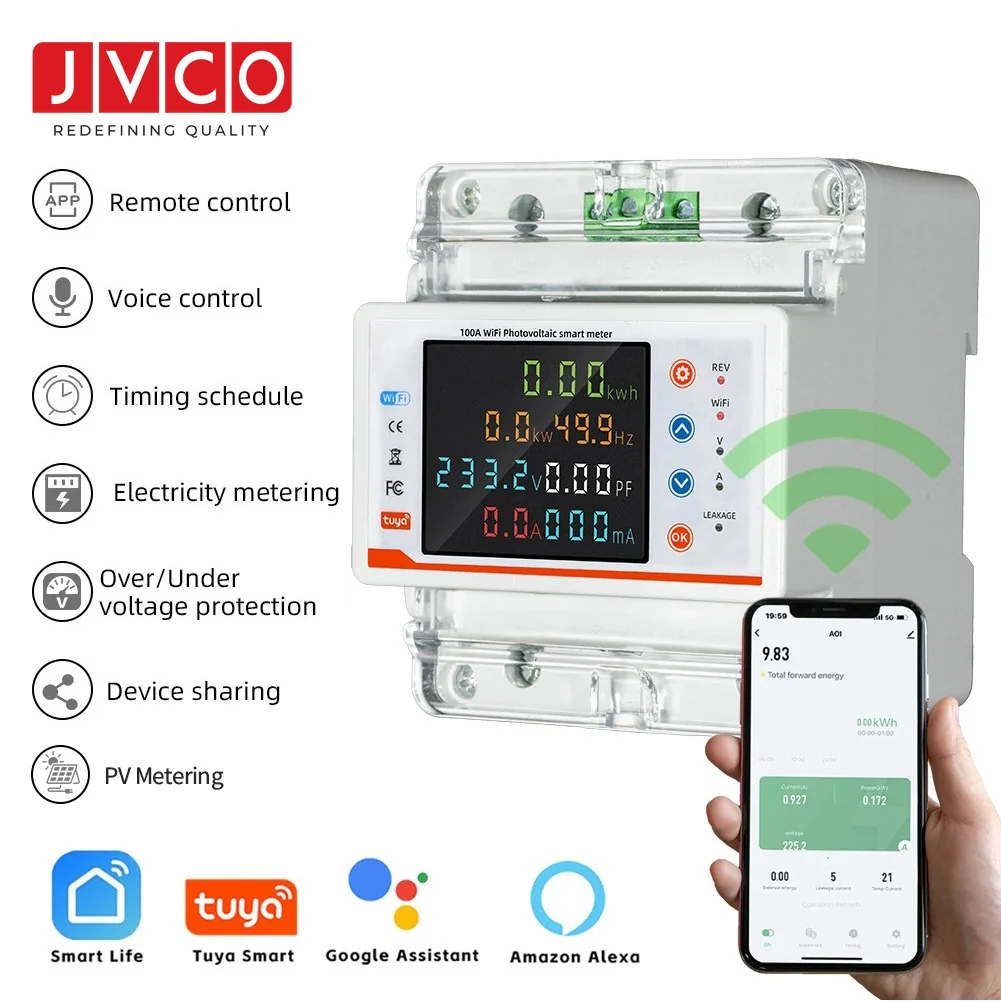

JVCO 14-in-1 100A Bidirectional Wi-Fi Smart Meter with Monitoring and Protection
Overview:
The JVCO 14-in-1 Wi-Fi Smart Meter is an advanced energy management system designed for real-time monitoring, control, and protection of your electrical system. With its integration into the Tuya Smart App, it allows for remote access to data and customizable protection thresholds, ensuring efficient and safe operation.
Main Features:
- Comprehensive Protection:
- Over Voltage & Under Voltage Protection
- Over Current & Under Current Protection
- Current Leakage Protection
- High Temperature Protection (configurable via the app)
- Smart Monitoring & Control:
- Bidirectional Energy Monitoring for import/export power tracking
- Real-time fault records and notifications via the Tuya App
- Timer Switch and Delay Protection for scheduled operations
- Customizable Parameters:
- Thresholds for voltage, current, leakage, and delay can be set via the app.
- Detailed fault history for enhanced diagnostics and maintenance.
- Wi-Fi Enabled:
- Seamless integration with the Tuya Smart App for remote management.
- LED Wi-Fi indicator:
- Fast flashing: Searching for signal
- Slow flashing: Offline
- Long light: Connected
Product Parameters:
- Rated Supply Voltage: AC 220V
- Rated Frequency: 50/60Hz
- Power Display Range: 0–99999.9 kWh
- Operation Voltage Range: AC 80–300V (Single Phase)
- Rated Current: 1–100A
- Protection Trip Action Time: < 0.5s
Protection Settings:
- Over Voltage Range: 120–300V
- Under Voltage Range: 80–210V
- Over Current Setting: 1–100A
- Leakage Protection: 10–99mA
- Delay Start Time: 0s–9999s
Environment:
- Operating Temperature: -30°C to 70°C
- Humidity: ≤85%
- Altitude: ≤2000m
- Pollution Level: 3

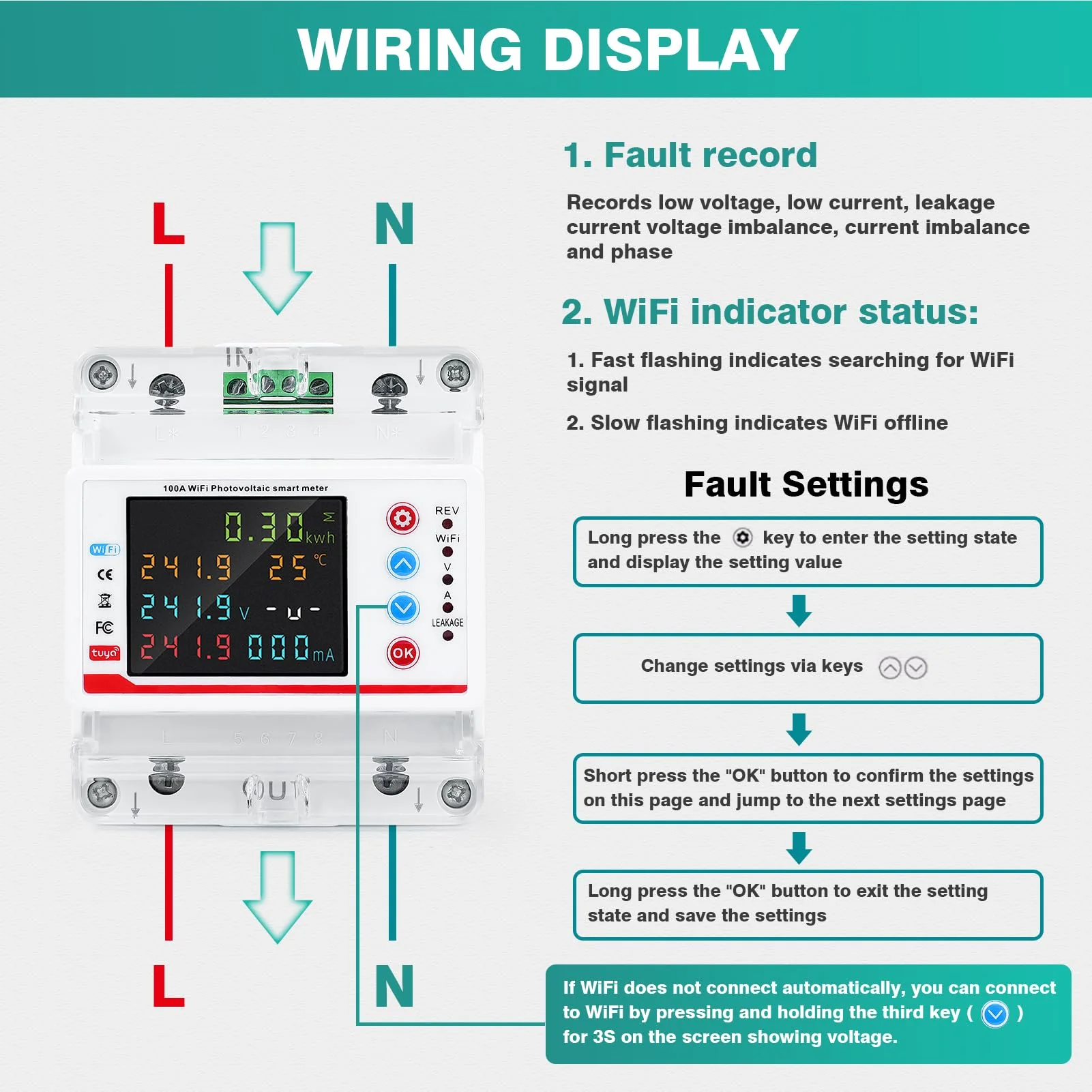

Installation & Usage Instructions:
- Installation Requirements:
- Modular DIN Rail design for easy mounting.
- Use insulated copper wires ≤ 35mm² for wiring.
- Ensure tight connections to avoid loose contacts or overheating.
- Usage Notes:
- This device does not replace a standard circuit breaker. Always install a circuit breaker for primary protection.
- Neutral (N) wire must be connected directly according to markings.
- Power should be turned off during installation or maintenance.
- Wi-Fi Connection:
- Follow the app instructions to connect the device to the network.
- Use the Tuya App to access data, configure settings, and review fault logs.
Why Choose JVCO 14-in-1 Smart Meter?
- Safety & Reliability: Advanced protection features ensure safety against electrical faults.
- Energy Efficiency: Real-time monitoring and bidirectional tracking help optimize energy usage.
- Convenience: Remote control and customization via the Tuya App provide flexibility and ease of use.
- Durability: Designed to withstand harsh conditions with a wide operating temperature range.
This smart meter is the ultimate solution for modern energy management, combining efficiency, safety, and innovation in one compact device.
