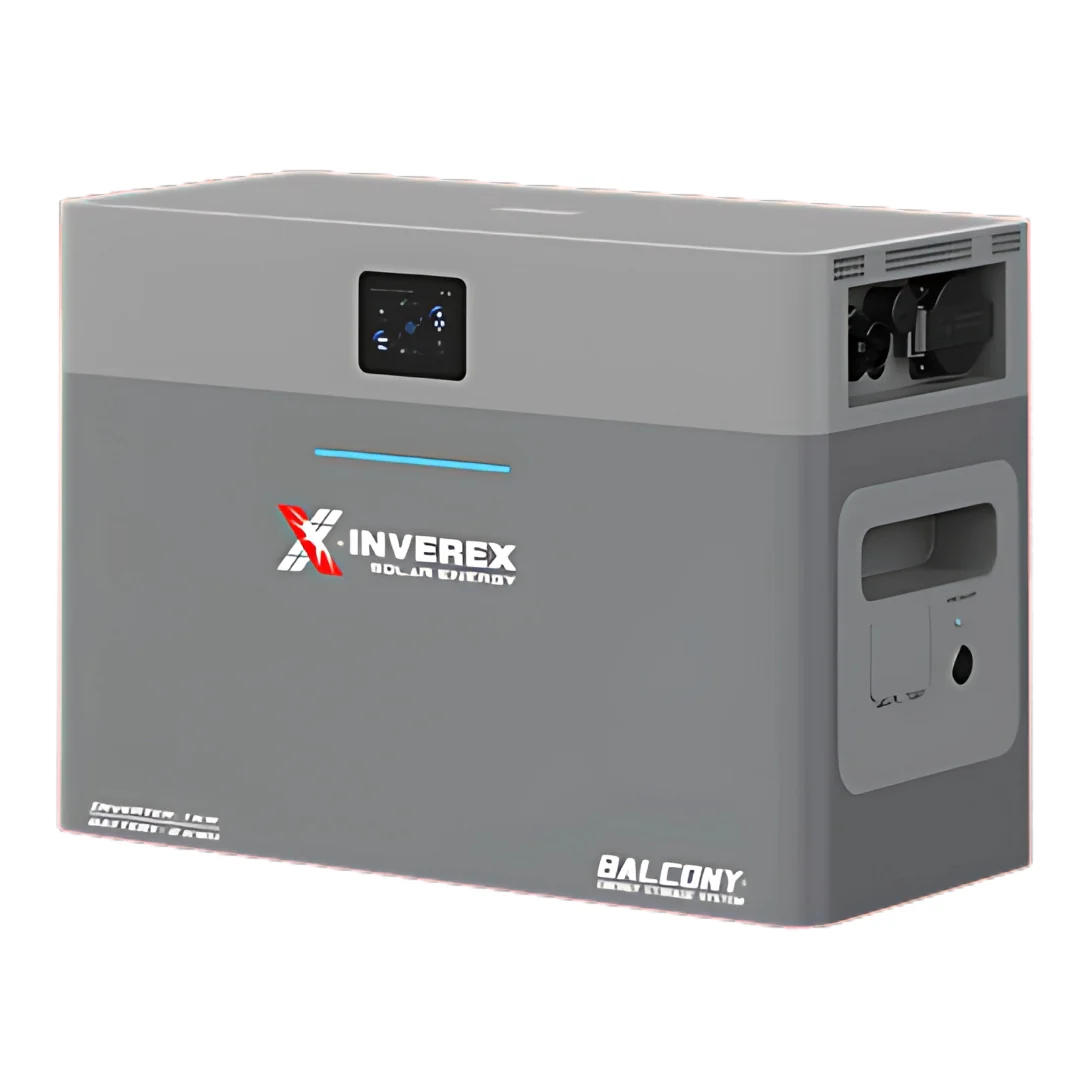

Name: Inverex BALCONY 1H2 1000W Compact Power System – Dual MPPT Inverter with Built-in 2000Wh Battery IP65
SKU: 510
Price: 309999 PKR
Availability: InStock

BALCONY 1H2 (1000W Inverter with 2000Wh LiFePO₄ Battery)

The BALCONY 1H2 is an all-in-one energy storage solution, combining a powerful 1000W off-grid pure sine wave inverter with a built-in 2000Wh high-cycle LiFePO₄ battery. It features dual MPPT solar charging, smart connectivity (Wi-Fi, Bluetooth, CAN2.0, and LoRa), and a responsive touch LCD interface. Engineered for residential, balcony solar systems, RVs, and off-grid or backup use, this compact unit delivers clean, reliable energy with smart control and robust safety standards.

Key Features

1000W Pure Sine Wave Inverter – Delivers clean and stable power ideal for sensitive electronics and appliances.
Built-in 2000Wh LiFePO₄ Battery – High-performance lithium iron phosphate battery with long cycle life and deep discharge support.
Dual MPPT Solar Charger – Two independent MPPT inputs with wide PV voltage range for optimized solar harvesting.
Wi-Fi, Bluetooth, CAN2.0 & LoRa Connectivity – Enables advanced remote monitoring and system control.
Color Touch LCD Display – User-friendly interface shows system performance, SOC levels, and alarm indicators.
Compact & Floor-Mountable Design – Space-saving and portable; ideal for small setups and mobile applications.
Smart Energy Management – Seamlessly integrates solar input, grid bypass, and battery storage for efficient usage.
Safety & Certification – Built to meet UN38.3, IEC, CE, VDE, and other key international standards.
5-Year Warranty – Long-term reliability and technical support for peace of mind.

Technical Specifications

Inverter Specifications

Specification	Details
Inverter Model	BALCONY 1H2
Nominal Output Power	1000W
UPS / Continuous Output	1000W
Peak Power (Off-grid)	2000W for 10 seconds
AC Input / Output Voltage	220V–230V AC, 50/60Hz
Rated AC Input / Output Current	4.6A (input) / 4.4A (output)
Max. Grid Input / Output Current	5.0A / 4.8A
Max. Grid to Load Bypass Current	10A
Output Type	Single Phase
Power Factor	0.8 leading to 0.8 lagging
THD (DC Injection Current)	<3% (Linear Load <1.5%)
Installation Type	Floor-mounted
IP Rating	IP65

PV (Solar Charger) Specifications

Specification	Details
Max. PV Access Power	2200W
Max. PV Input Power	1600W
Number of MPPTs	2
MPPT Input Current	18A + 18A
Max. PV Short Circuit Current	27A + 27A
Rated PV Voltage	42.5V (Operating Range: 20V–55V)
PV Start-up Voltage	25V DC

Battery Specifications

Specification	Details
Battery Type	Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage	51.2V
Total Energy Capacity	2000Wh
Operating Voltage Range	44.8V – 57.6V
Charge / Discharge Current	40A
Battery Cycle Life	≥6000 cycles @25°C, 0.5C, 70% EOL
Parallel Capability	Up to 5 units
Weight	20 kg
Battery Display	LED (SOC, Alarm) / Optional LCD
Battery Communication Interfaces	CAN2.0, LoRa, Wi-Fi, Bluetooth

General & Environmental Specifications

Specification	Details
Display	Touch LCD + App + LED Indicators
Dimensions (W × D × H)	450 × 210 × 244 mm
Total Weight	26 kg (including inverter + battery)
Operating Temperature Range	-10°C to 50°C
Max. Operating Altitude	3000 meters
Relative Humidity	15% – 85% (Non-condensing)
Certifications	UN38.3, CE, IEC 62619, VDE, G98, NBR
Warranty	5 Years
