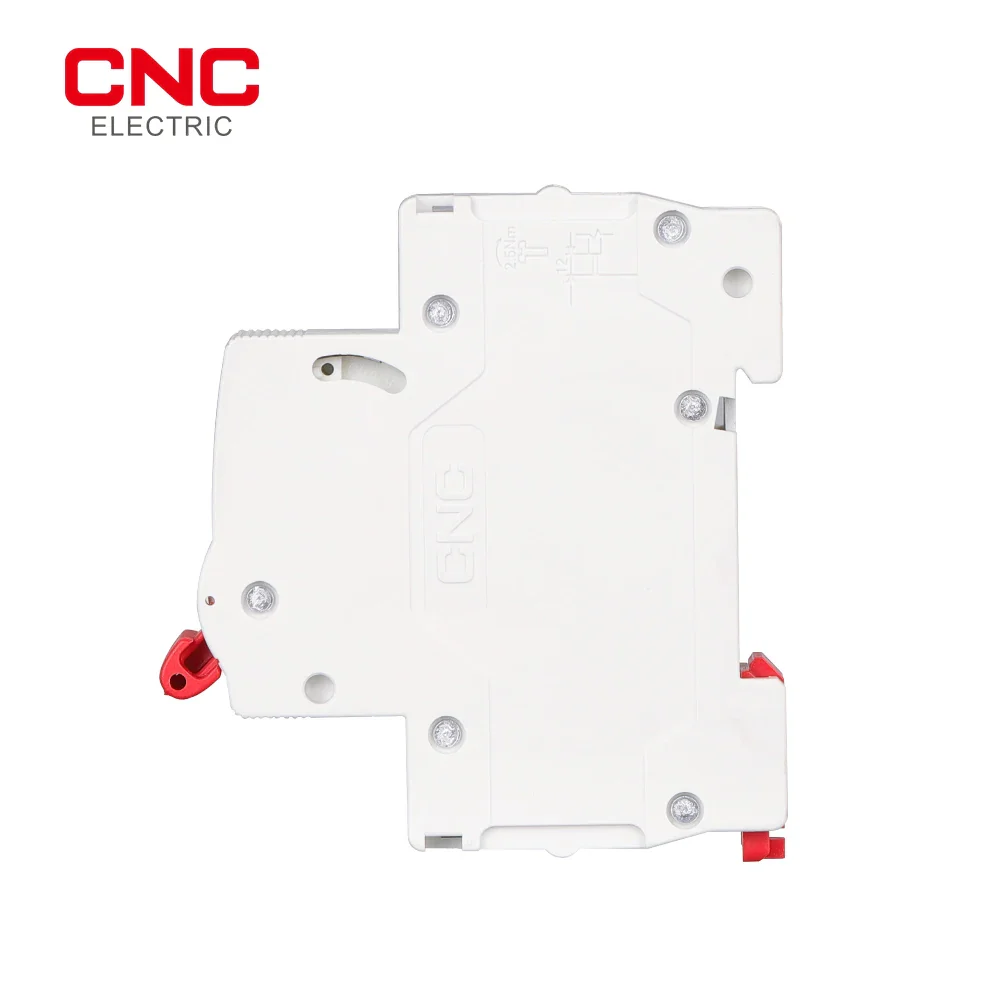

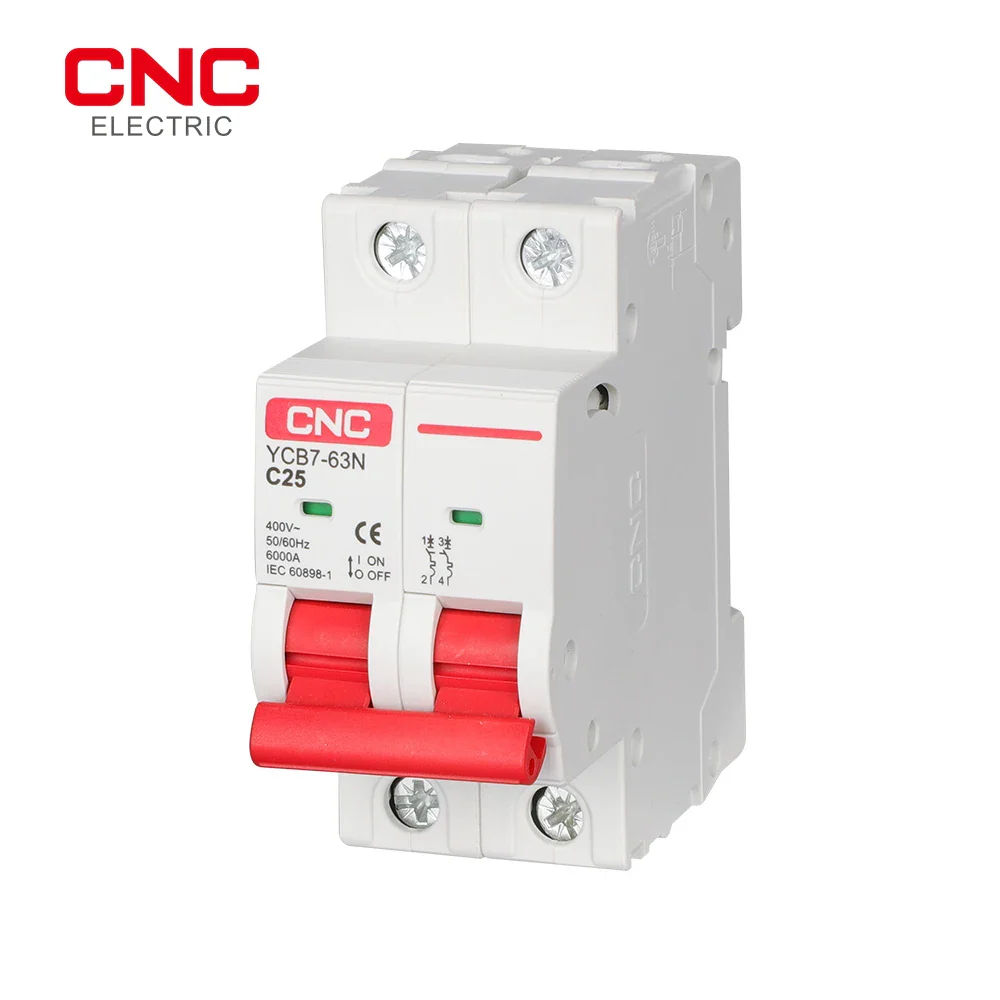

CNC YCB7-63N 2P AC MCB Circuit Breaker
The CNC YCB7-63N 2P AC MCB Circuit Breaker is a high-performance miniature circuit breaker designed for overcurrent protection in AC systems. Operating at 50/60Hz with a 230V/400V rated voltage and a current range up to 63A, it is ideal for residential, commercial, and industrial applications. This breaker ensures reliable overload, short circuit, and isolation protection, complying with the IEC/EN 60898-1 standard.
Key Features:
- Number of Poles: 2P (also available in 1P, 3P, and 4P variants).
- Rated Current: 6A to 63A, offering flexibility for various applications.
- Rated Voltage: 230V/400V AC.
- Rated Frequency: 50/60Hz.
- Rated Breaking Capacity: 6000A, ensuring reliable fault clearing.
- Functionality: Provides protection from overload, short circuit, and isolation.
- Standard Compliance: Meets IEC/EN 60898-1 for safety and reliability.
- Durable Design: Built to withstand demanding environments with a rated insulation voltage of 500V.
Benefits:
- Comprehensive Protection: Ensures safety by protecting circuits from electrical faults.
- Versatile Applications: Suitable for residential, commercial, and industrial systems.
- Reliable Performance: Maintains operational stability in both standard and high-stress conditions.
- Infrequent Switching: Can be used for occasional manual operation and line switching.
- Space-Saving Design: Compact size allows easy integration into electrical panels.
Applications:
- Residential Buildings: Protects home electrical circuits from overloads and short circuits.
- Commercial Spaces: Ensures safety in office buildings, retail shops, and similar setups.
- Industrial Facilities: Provides reliable circuit protection for machinery and automation systems.
- High-Rise Buildings: Ideal for complex electrical setups requiring robust safety measures.
Specifications:
- Number of Poles: 2P (also available in 1P, 3P, 4P options).
- Rated Current (In): 6A – 63A.
- Rated Voltage (Ue): 230V/400V AC.
- Rated Frequency: 50/60Hz.
- Rated Insulation Voltage (Ui): 500V.
- Breaking Capacity (Icn): 6000A.
- Standard: IEC/EN 60898-1.
Conclusion:
The CNC YCB7-63N 2P AC MCB Circuit Breaker combines safety, reliability, and efficiency, making it an excellent choice for protecting electrical systems across various environments. With its robust design and compliance with international standards, it provides peace of mind for homeowners, businesses, and industries alike.
