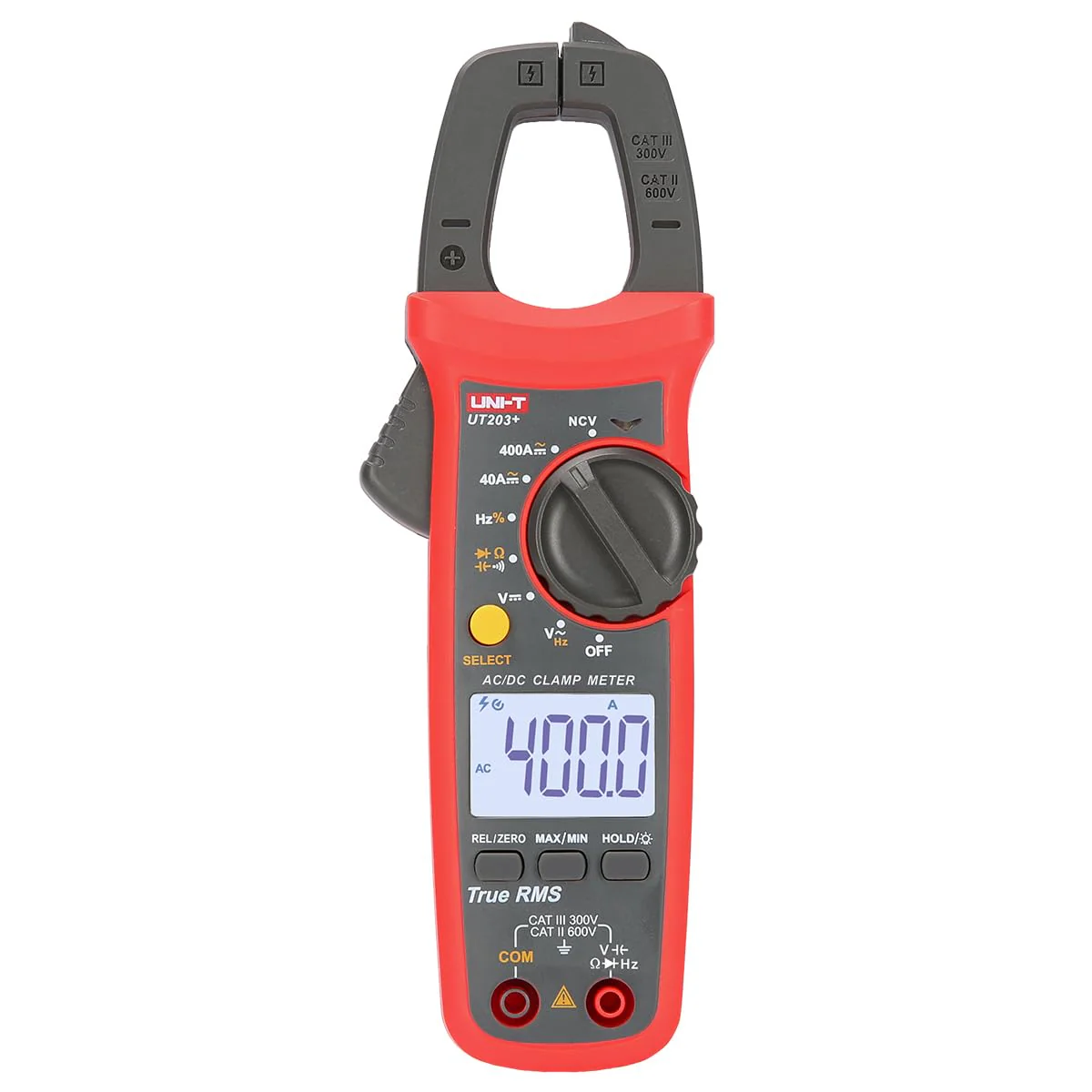

Name: Uni-T UT203+ Digital Clamp Multimeter DC AC Current Voltmeter 400-400A
SKU: 844
Availability: InStock

Features Of UT 203 + 400-600A Digital Clamp Meter:

UT203+ with a large LCD display screen and fast ADC / ADC converter, the data display is clear and intuitive, and easy to observe.
UT203 plus Supports full-function with error detection protection, with over-current, over-voltage alarm prompts, you can rest assured that use.
This multimeter Unit203 plus supports true RMS with high efficiency and real-time measure the RMS of various voltage waveforms.
This Meter has a maximum 600V voltage measurement and a high voltage frequency measurement function.
UT203 plus can be widely used in commercial, industrial, and residential circuit maintenance. It is a great tool for circuit repairmen.
Specifications Of UT203+ (upgraded UT203)

Specifications of UT200+ Series 400A/600A Digital Clamp Meters

Specifications	Range	UT201+	UT202+	UT202A+	UT203+	UT204+
AC current (A)	400A	±(2%+10)	±(2%+10)		±(2.5%+5)
AC current (A)	600A			±(2%+10)		±(2.5%+5)
AC current frequency (Hz)	50Hz~100Hz	±(1%+5)	±(1%+5)	±(1%+5)
DC current (A)	400A				±(2.5%+5)
DC current (A)	600A					±(2.5%+5)
AC voltage (V)	600V	±(0.8%+5)	±(0.8%+5)	±(0.8%+5)	±(0.8%+5)	±(0.8%+5)
AC voltage frequency(Hz)	10Hz~10kHz	±(1%+5)	±(1%+5)	±(1%+5)
AC voltage frequency(Hz)	10Hz~60kHz				±(0.5%+2)	±(0.5%+2)
DC voltage (A)	600V	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)
Resistance (Ω)	40MΩ	±(0.8%+2)	±(0.8%+2)		±(0.8%+2)
Resistance (Ω)	60MΩ			±(0.8%+2)		±(0.8%+2)
Capacitance (F)	4mF		±(4%+5)
	40mF				±(4%+5)
	60mF			±(4%+5)		±(4%+5)
Temperature (℃)	-40℃~1000℃		±(1.5%+5)			±(1.5%+5)
Frequency (Hz)	10Hz~10MHz			±(0.1%+4)	±(0.1%+4)	±(0.1%+4)
Features
Display count		4000	4000	6000	4000	6000
Auto range		√	√	√	√	√
Jaw opening		28mm	28mm	28mm	28mm	28mm
True RMS		√	√	√	√	√
NCV		√	√	√	√	√
Live wire test				√		√
Continuity test		√	√	√	√	√
Diode		√	√	√	√	√
MAX/MIN		√	√	√	√	√
Relative mode			√	√	√	√
Zero mode					√	√
Data hold		√	√	√	√	√
Low battery indication		√	√	√	√	√
Auto power off		√	√	√	√	√
General Characteristics
Power	1.5V battery (R03) x 2
Display	37mm x 25mm
Product color	Red and grey
Product net weight	UT201+/UT202+/UT202A+：248g; UT203+/UT204+:235g
Product size	215mm x 63mm x 36mm
Standard accessories	Batteries, test leads, Themocouple (UT202+/UT204+)
Standard individual packing	Gift box, Carring bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 295mm x 385mm
Standard carton gross weight	UT202A+: 17.8kg; UT203+: 16.8kg; UT201+/202+/204+: 17.3kg
