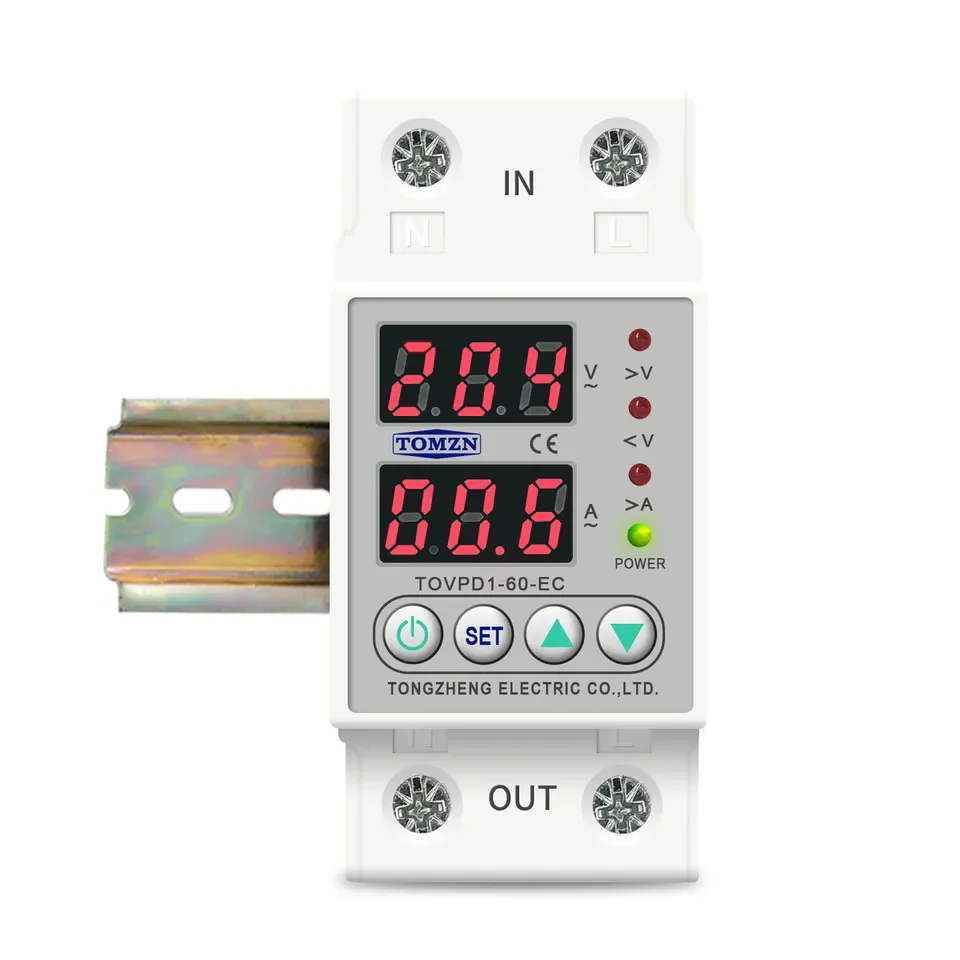

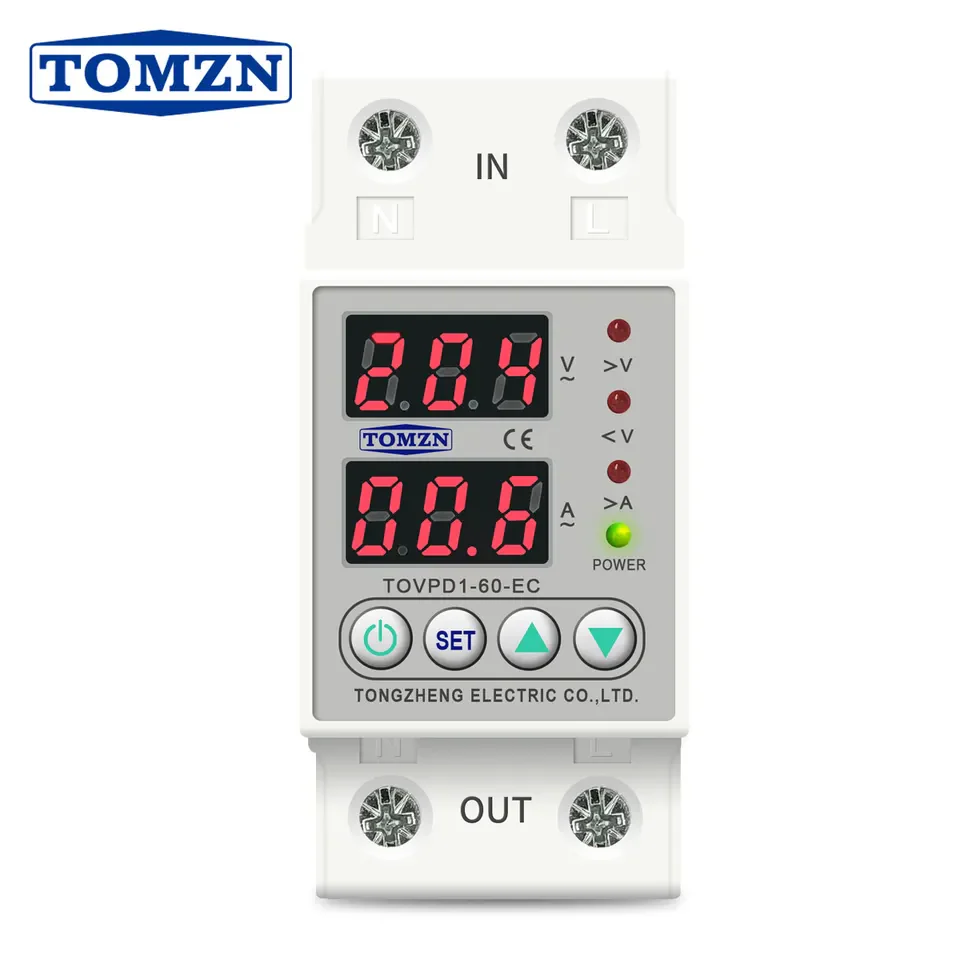

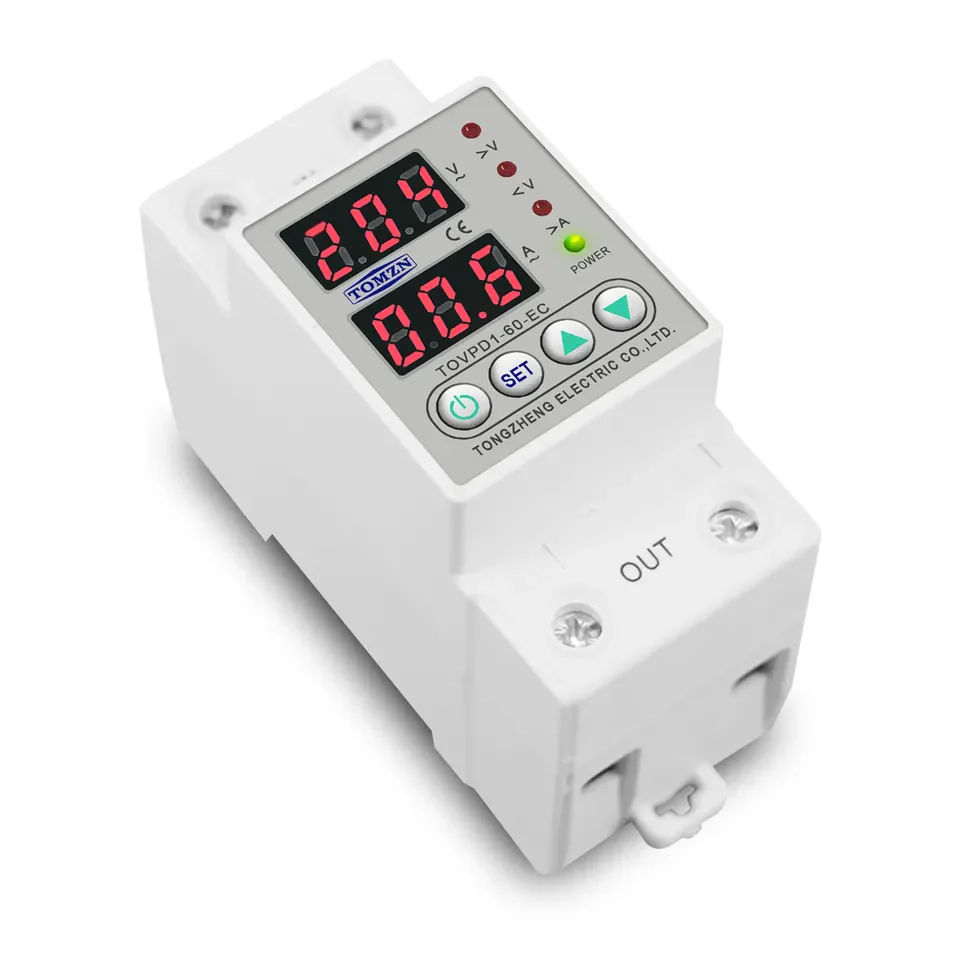

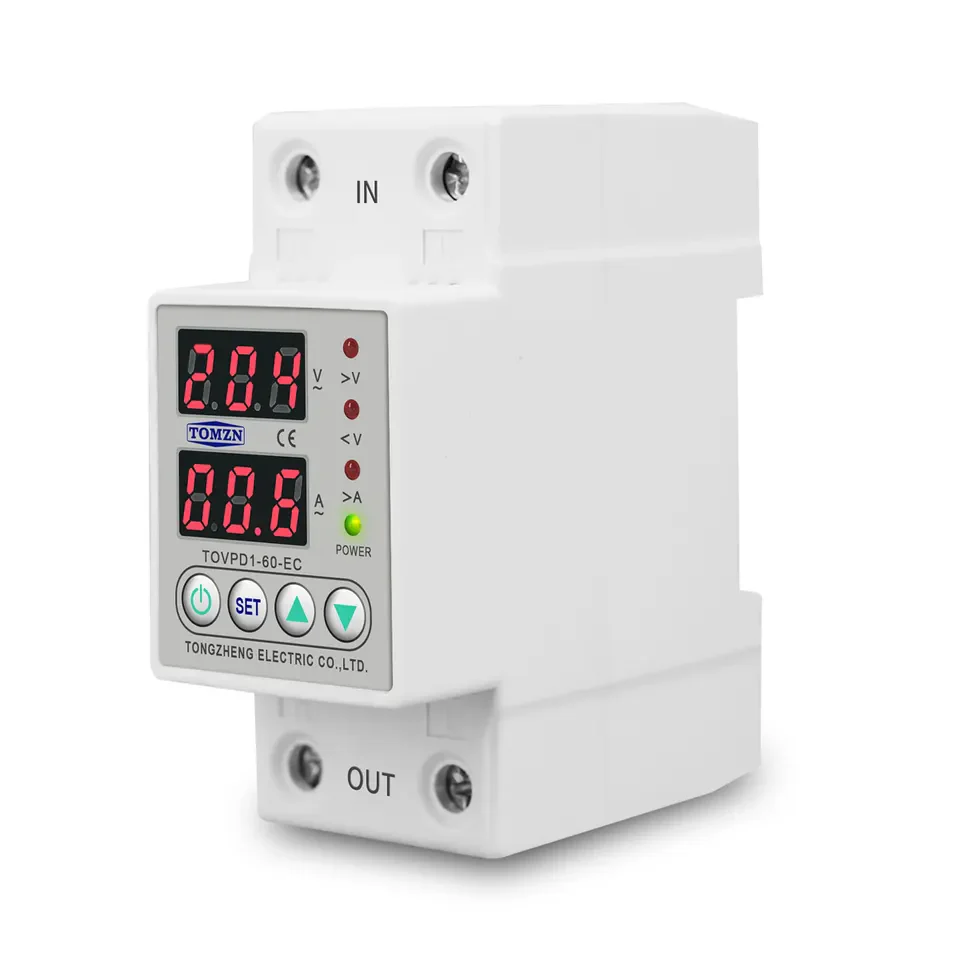

Tomzn 4th Gen 2IN1 Adjustable Over & Under Voltage Protector TOVPD1-63/TOVPD1-40
Original price was: ₨ 2,750.₨ 2,299Current price is: ₨ 2,299.
The Tomzn 4th Gen 2-in-1 Adjustable Over & Under Voltage Protector (TOVPD1-63/TOVPD1-40) is a reliable device designed to protect electrical systems from over-voltage, under-voltage, and over-current issues. It features automatic recovery and real-time monitoring, making it suitable for both residential and industrial applications.
Key Features (Bullet Points):
- Comprehensive Protection: Includes over-voltage, under-voltage, and over-current protection to safeguard appliances.
- Adjustable Settings:
- Over-Voltage: Range 230V–300V (default: 270V).
- Under-Voltage: Range 140V–210V (default: 170V).
- Over-Current: Range 1A–63A (default: 40A/63A).
- Automatic Recovery: Resumes normal operation automatically after resolving power disruptions.
- Real-Time Monitoring: Displays voltage and current for accurate diagnostics.
- Customizable Calibration: Adjust voltage calibration within ±10% for enhanced accuracy.
- Quick Reset: Restore factory settings by holding the reset button for 12 seconds.
- Fault Log Inquiry: Check fault history by holding the inquiry button for 12 seconds.
- Adjustable Action Times: Customize delay times for protection and recovery actions (0.1s to 500s).
- Durable Design: Rated for 100,000 mechanical operations.
- Energy Efficient: Consumes less than 2W of power.
- Easy Installation: Standard 35mm DIN rail mounting ensures secure and simple setup.
Product Specifications:
- Model Number: TOVPD1-63
- Power Supply: 230VAC/110VAC, 50/60Hz
- Max Load Capacity: Adjustable 1A–63A
- Protection Action Time: Adjustable 0.1s–30s (default: 0.5s)
- Recovery Delay Time: Adjustable 1s–500s (default: 30s)
- Power-On Delay Time: Adjustable 1s–500s (default: 10s)
- Power Consumption: <2W
This advanced voltage protector ensures safe and efficient operation of electrical systems, combining customizable settings and long-term durability.
