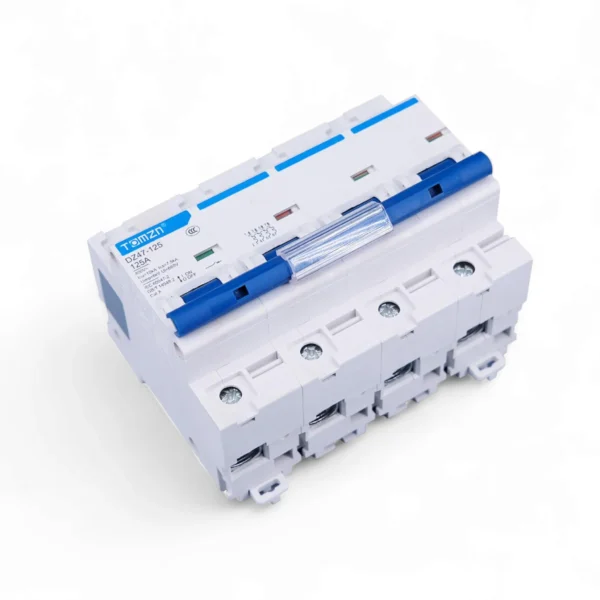

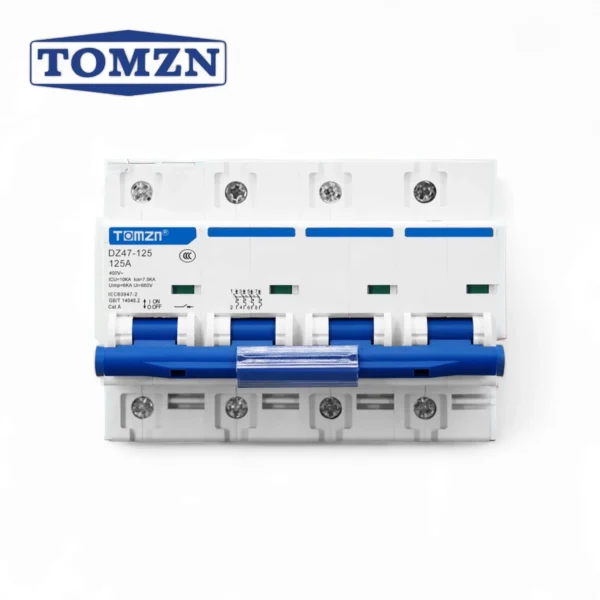

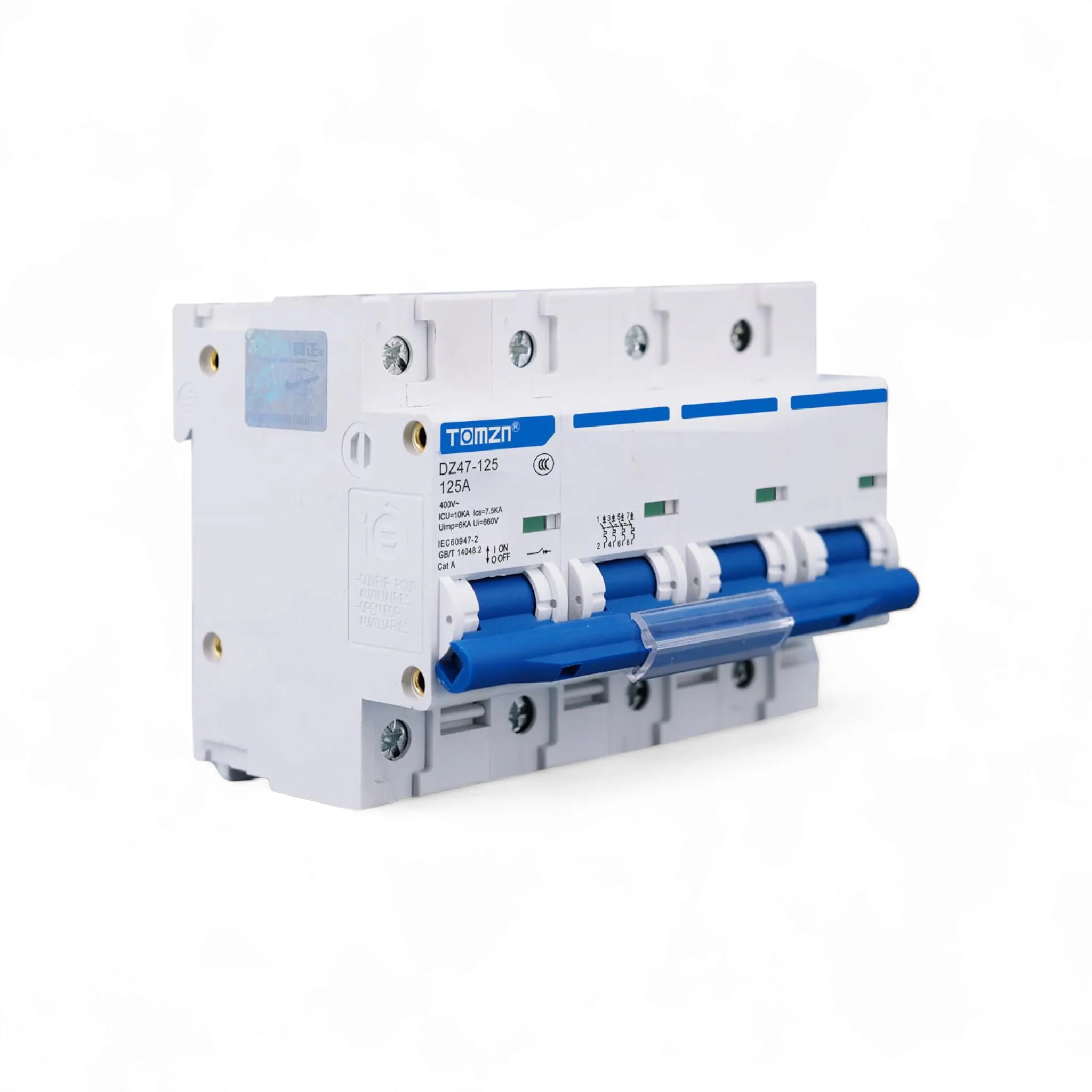

Tomzn 4P AC Circuit Breaker 400V 125A
Specifications:
- Brand: TOMZN
- Type: 4-Pole AC Circuit Breaker
- Rated Voltage: 400V AC
- Current Rating: 125A
- Compliance: IEC/EN60898-1 or IEC/EN60947-2
Key Features:
- Indicator Function:
- Equipped with an indicator for the contact position, allowing clear visibility of the breaker’s operational status.
- Bilateral Busbar Wiring:
- Supports bilateral busbar wiring, making it adaptable for a wide range of applications and premises.
- Enhanced Wiring Capacity:
- Maximum connecting capacity of 25mm² wires, ensuring compatibility with larger cables.
- Wiring torque of 3N·m provides strong and secure connections.
- Versatile Installation:
- Designed for compatibility with various installation equipment, enhancing flexibility and ease of use.
- Durable Construction:
- Built to handle high current loads and provide reliable protection in demanding environments.
Applications:
- Suitable for industrial, commercial, and residential electrical systems.
- Ideal for protecting circuits from overload and short circuits in three-phase systems.
Standards:
- Certified in compliance with IEC/EN60898-1 and IEC/EN60947-2, ensuring safety and reliability in operation.
The Tomzn 4P AC Circuit Breaker (400V 125A) combines robust protection, adaptable installation options, and compliance with international standards, making it a reliable choice for diverse electrical systems.
