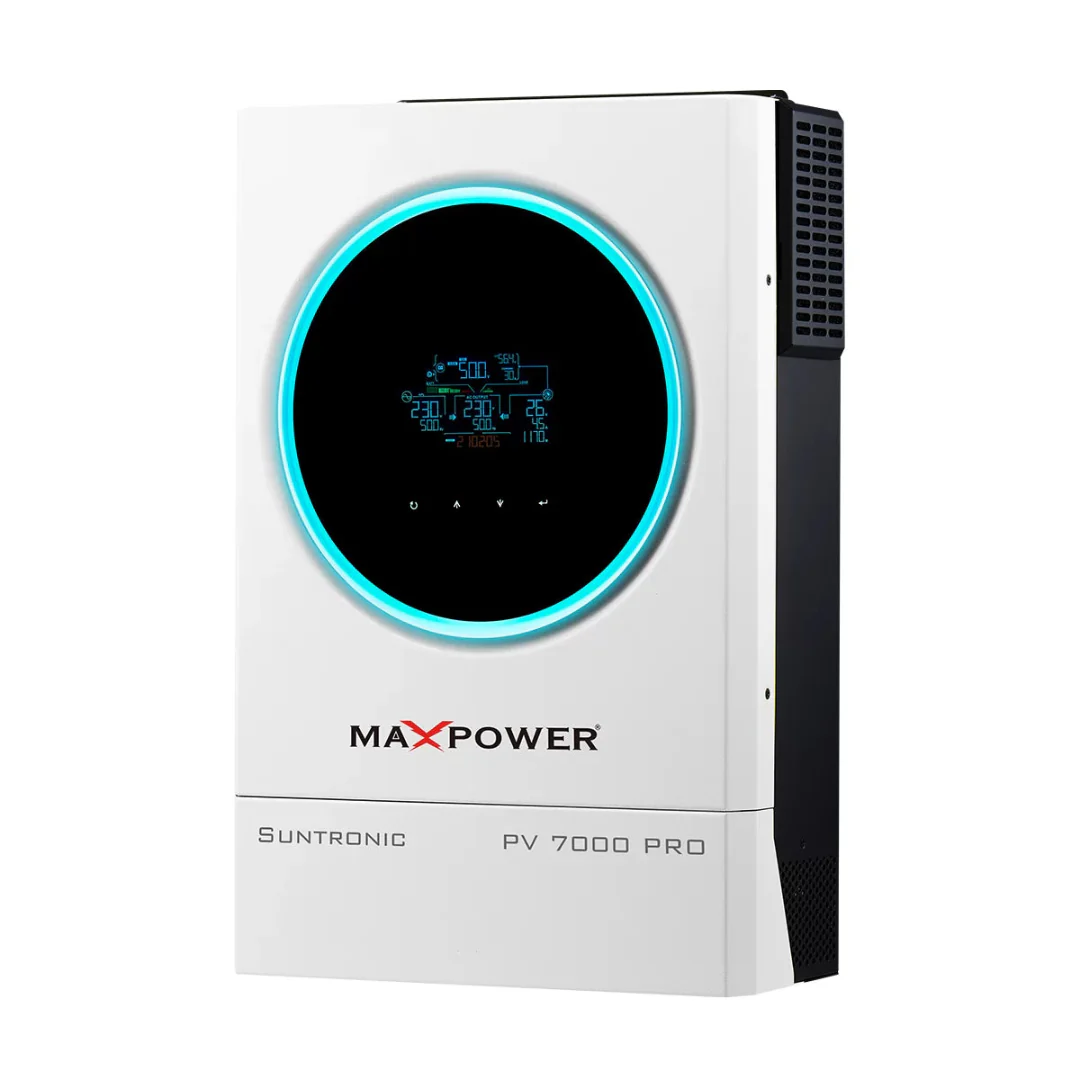

MaxPower Suntronic PV 7000 Pro 6KW Solar Hybrid Inverter with 7000W PV
The MaxPower Suntronic PV 7000 Pro is a high-performance hybrid solar inverter designed for both grid-tied and off-grid solar applications. With its efficient power conversion and flexible features, it provides optimal energy management for residential and commercial systems.
Key Features
- Rated Power: 6000W for reliable and stable energy output.
- Maximum PV Input: 7000W, ensuring high solar power capacity for efficient energy conversion.
- Wide DC Voltage Range: 360V to 500V, offering flexibility in PV panel selection for various installations.
- High Efficiency: 96% conversion efficiency, ensuring minimal energy loss and maximizing solar power utilization.
- Pure Sine Wave Output: Delivers clean and stable electricity, suitable for sensitive electronics and appliances.
- Multiple Communication Options: Includes USB, RS232, RS485, WiFi, and Dry-contact, enabling easy monitoring and control of the system.
- Grid-Tied & Off-Grid Capability: Ideal for both grid-connected and standalone off-grid solar setups, providing versatile solar power solutions.
The MaxPower Suntronic PV 7000 Pro offers exceptional energy efficiency, reliability, and flexibility, making it a perfect choice for sustainable energy management in diverse solar installations.
Specifications
| Feature | Details |
|---|---|
| Maximum PV Input Power | 7000W |
| Rated Output Power | 6000W |
| Maximum Charging Power | 6000W |
| Grid-Tie Operation | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 110VDC / 120 VDC |
| MPP Voltage Range | 120 VDC – 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1 / 27 A |
| Grid Output (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
| Nominal Output Current | 26A |
| Power Factor | > 0.9 |
| Efficiency | 96% |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| Off-Grid Operation | |
| AC Input | |
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90-280 VAC or 170-280 VAC |
| Maximum AC Input Current | 40 A |
| PV Input (DC) | |
| Maximum DC Voltage | 500 VDC |
| MPP Voltage Range | 120 VDC – 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1 / 27 A |
| Battery Mode Output (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| Hybrid Operation | |
| PV Input (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 110VDC / 120 VDC |
| MPP Voltage Range | 120 VDC – 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1 / 27 A |
| Grid Output (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
| Nominal Output Current | 26A |
| Battery & Charger | |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
| Maximum Charging Current | 120A |
| General | |
| Physical Dimensions (D x W x H) | 140 x 295 x 468 mm |
| Net Weight | 12 kg |
| Interface | |
| Parallel Function | Yes, up to 9 units |
| Communication Port | USB/RS232/RS485/WiFi/Dry-contact |
