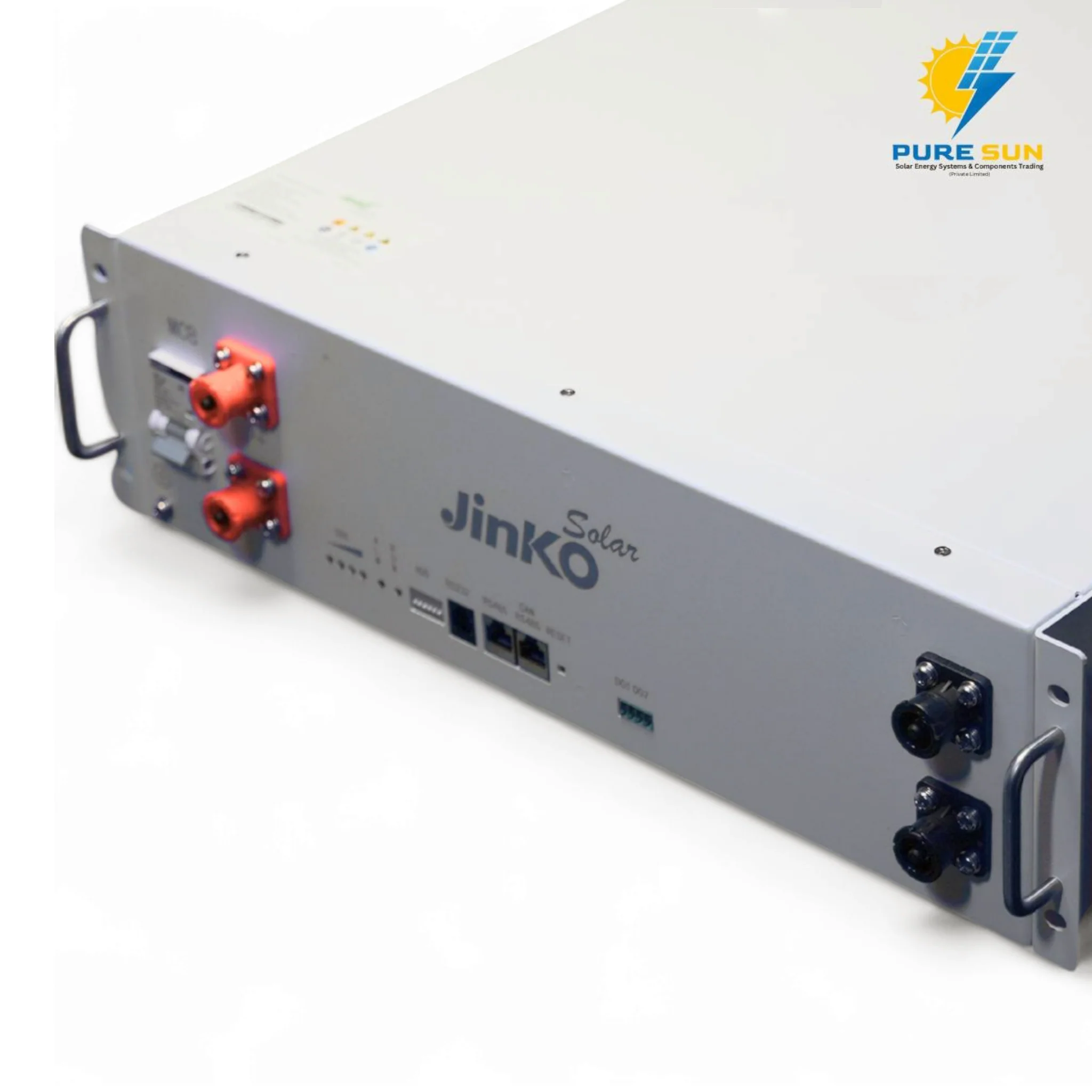

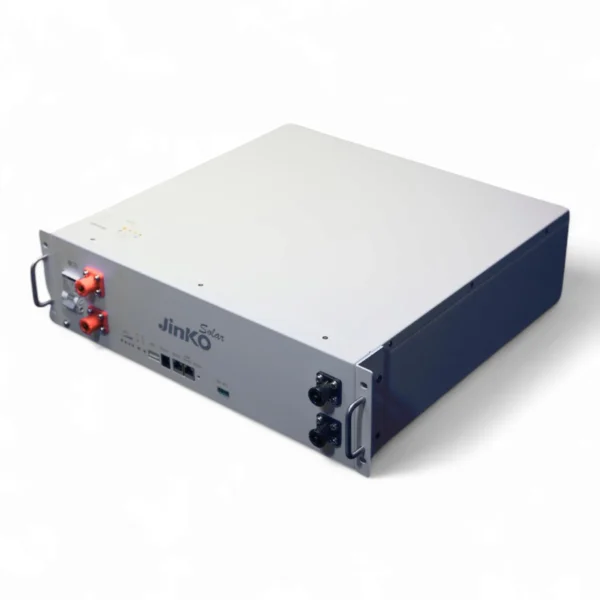

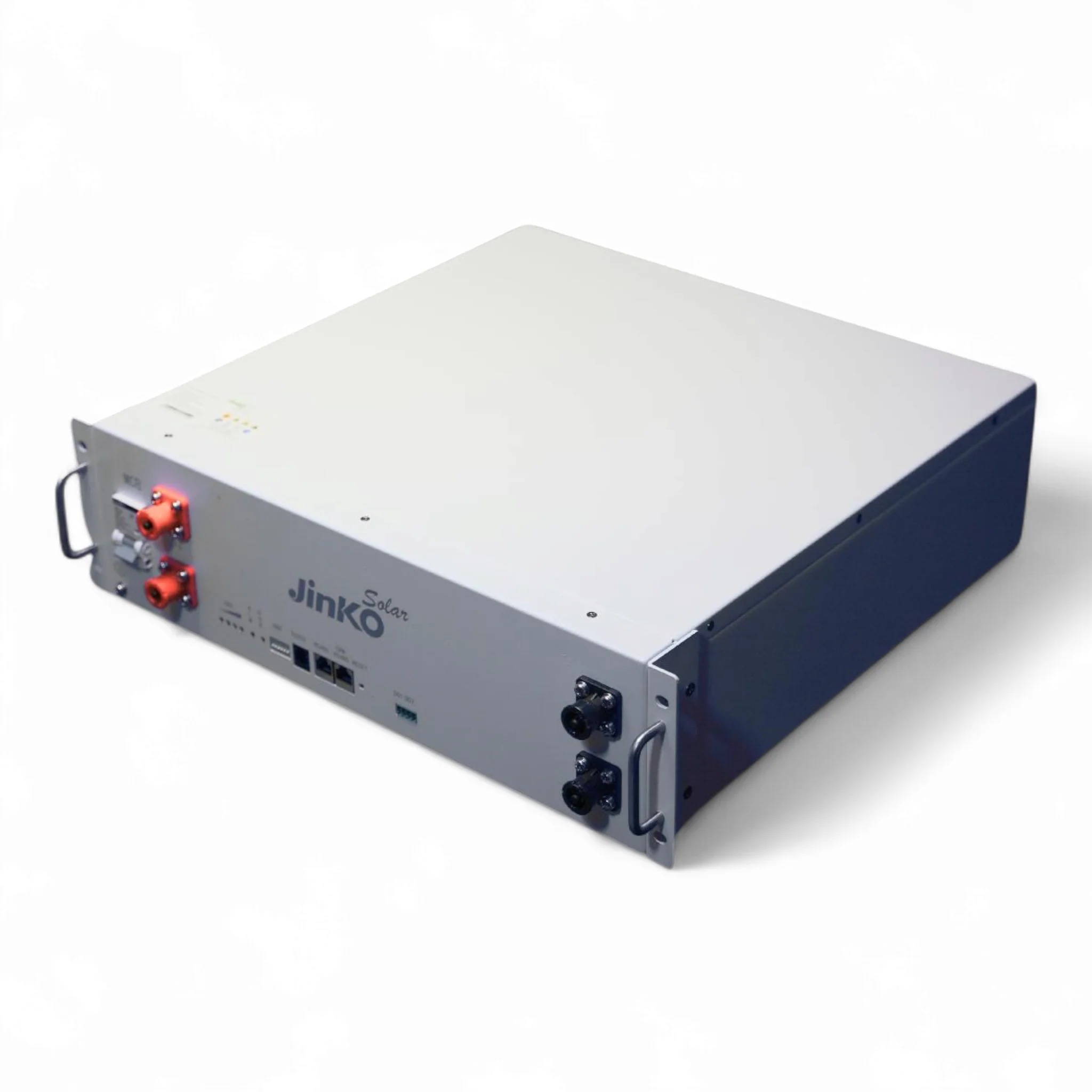

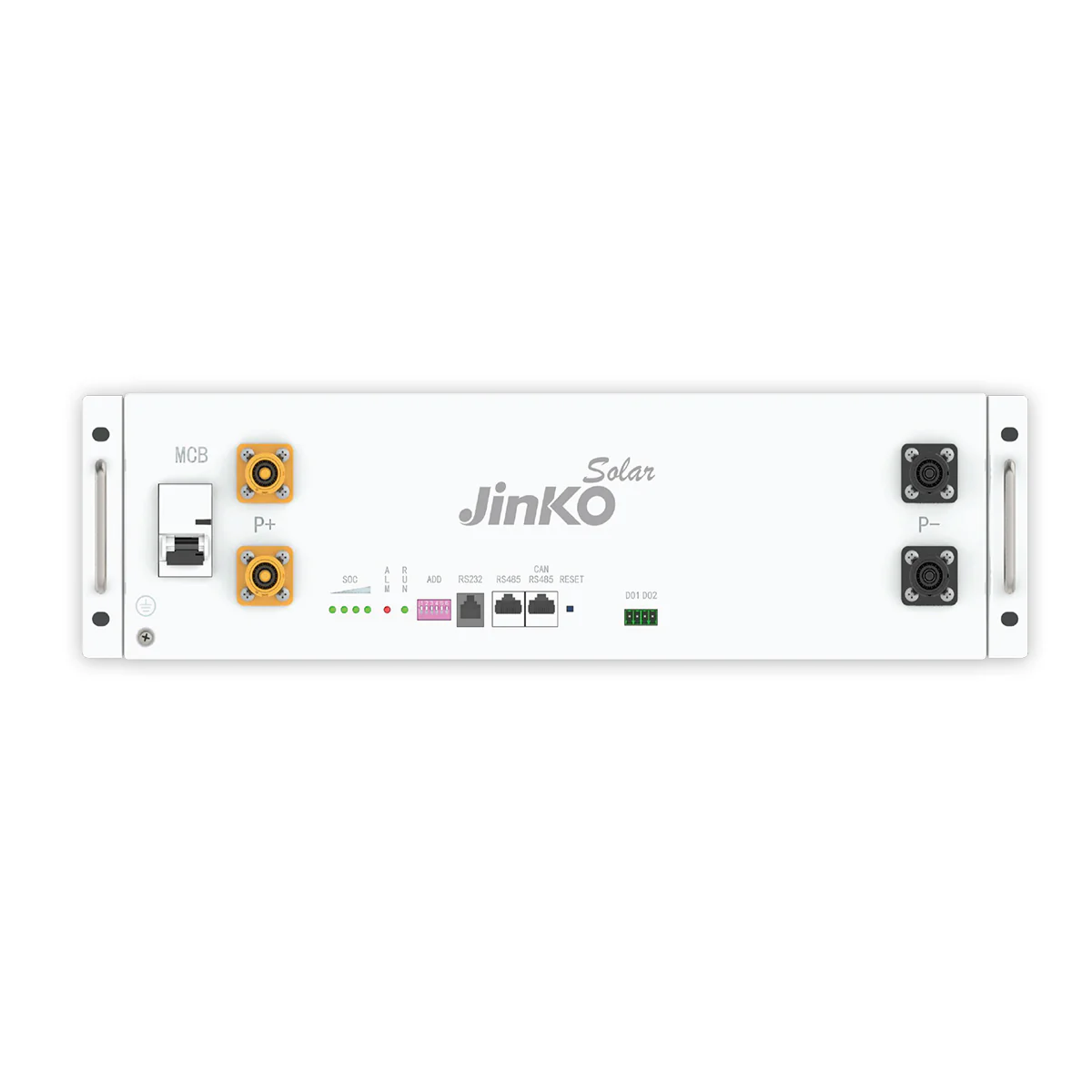

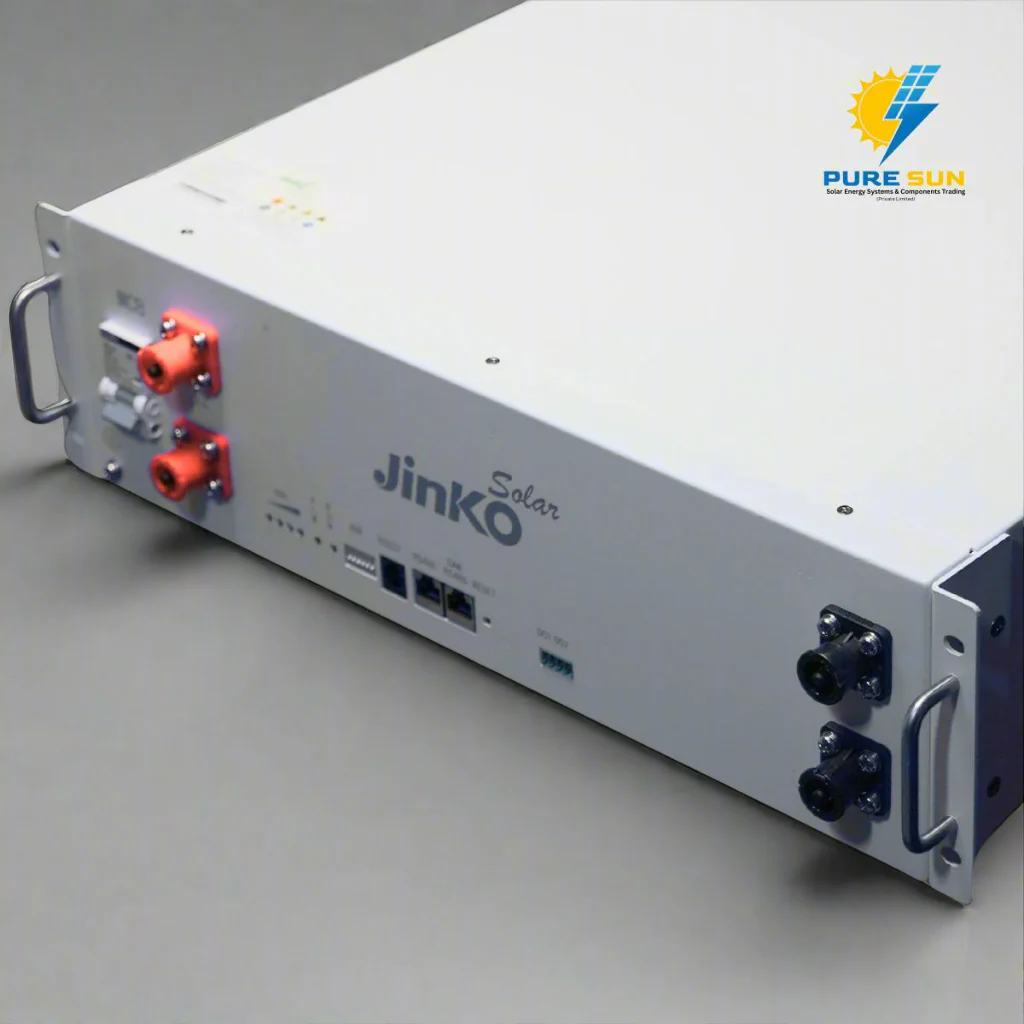

Name: Jinko JKS-B48100-HI 48V 100Ah Lithium-Ion LiFePO₄ Battery – 4.8kWh – IP20
SKU: 503
Availability: InStock

Upgrade your solar energy storage system with the Jinko JKS-B48100-HI, a powerful and reliable 48V 100Ah low-voltage LiFePO₄ (LFP) battery. Designed for long-lasting performance, safety, and seamless integration, this 4.8kWh module is ideal for home, commercial, or backup applications.

Key Features:

High Capacity: 4.8kWh of storage per unit
Cycle Life: Over 6000 cycles at 80% DoD
Smart BMS: Built-in Battery Management System ensures safety and longevity

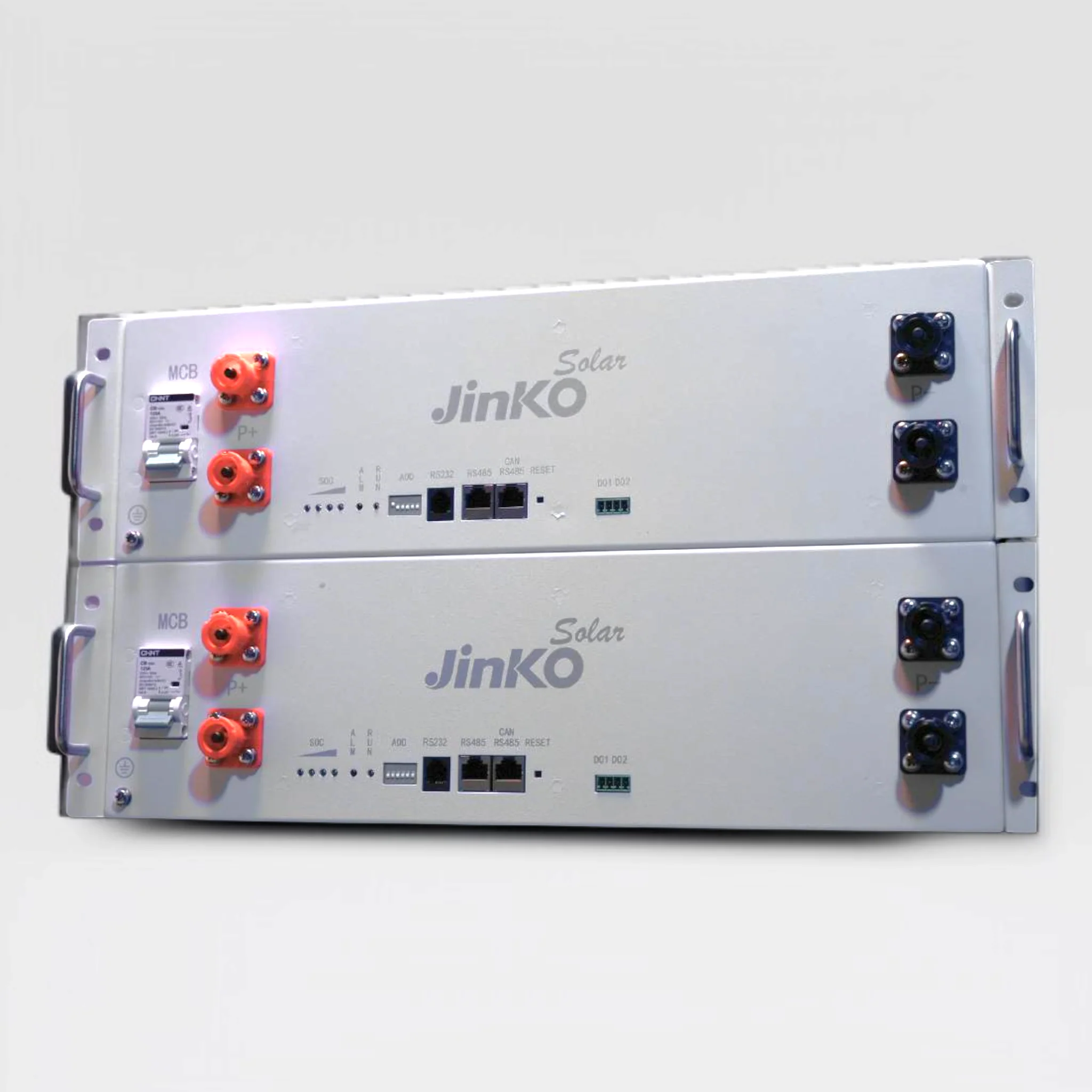

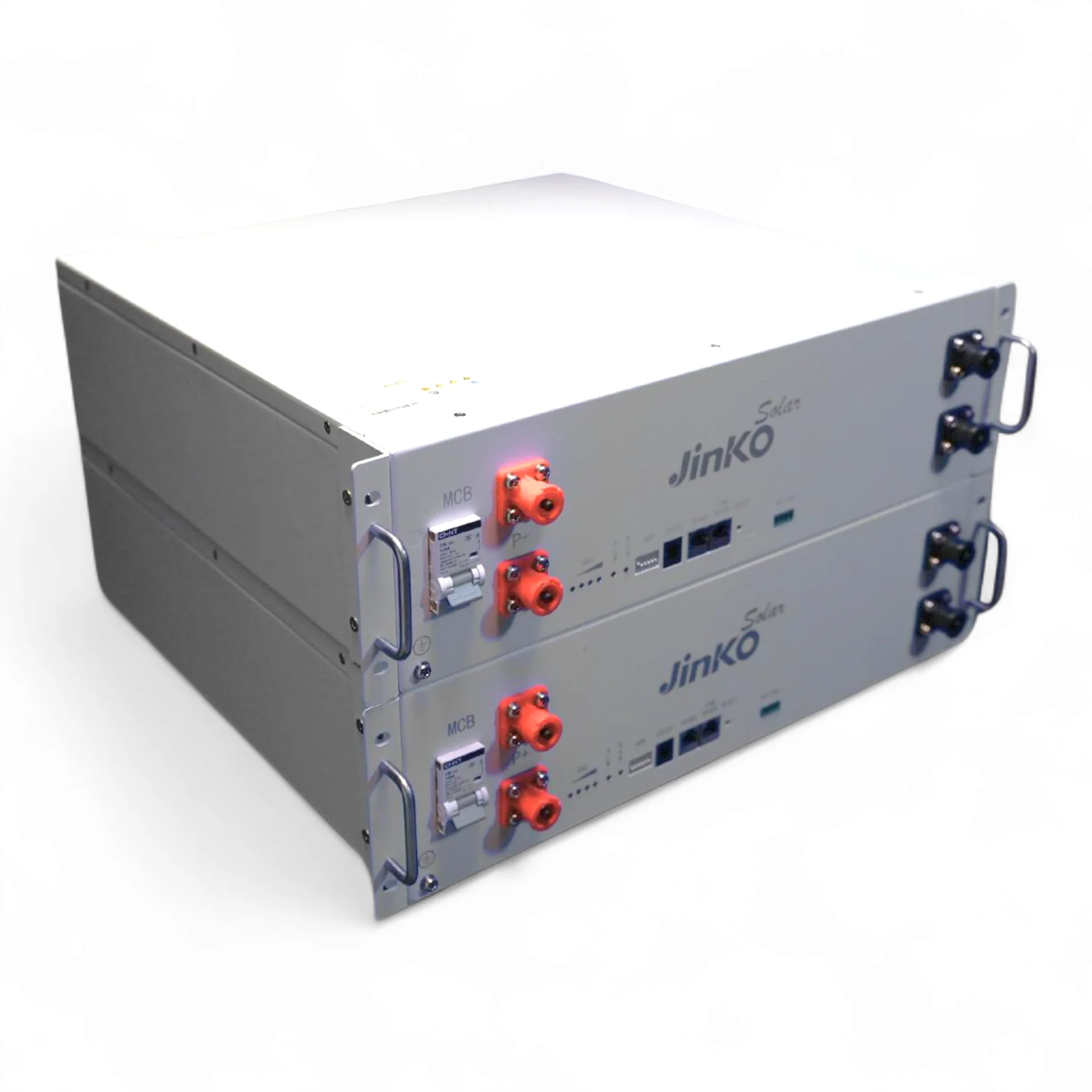

Modular Design: Easy to scale with stackable units

Specification	Details
Model	JKS-B48100-HI
Battery Type	LiFePO₄ (LFP)
Rated Voltage	48V
Capacity	100Ah
Energy Capacity	4.8kWh
Usable Capacity	>4.5kWh @ 25°C
Operation Voltage Range	40.5V – 54V
Cycle Life	>6000 cycles @ 80% DoD, 25°C
Max Charge Current	100A
Max Discharge Current	100A
Peak Discharge Current	300A
Recommended Charge Current	50A
Recommended Discharge Current	50A
Charging Temp. Range	0°C – 55°C
Discharging Temp. Range	-20°C – 60°C
Storage Temp. Range	0°C – 30°C
Humidity	5% – 95% RH
Weight	41 ±2 kg
Dimensions (W × H × D)	442 × 430 × 130.5 mm (±2)
Enclosure Protection Rating	IP20
Warranty	10 years
Certifications	IEC62619, CE, UN38.3 (Cell & Pack)

Whether you’re expanding your current solar system or starting fresh, the JKS-B48100-HI offers unmatched performance, durability, and safety for years to come.
