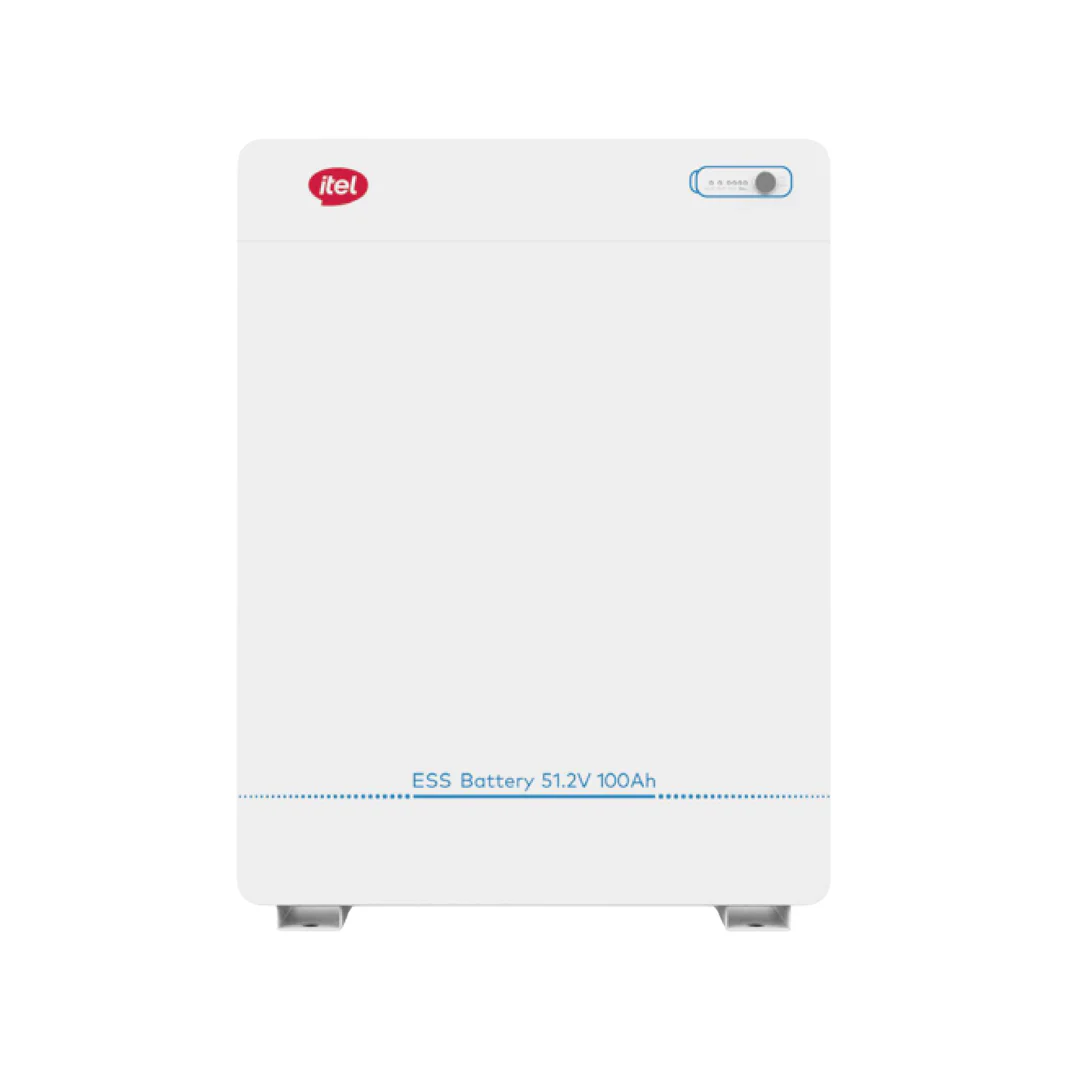

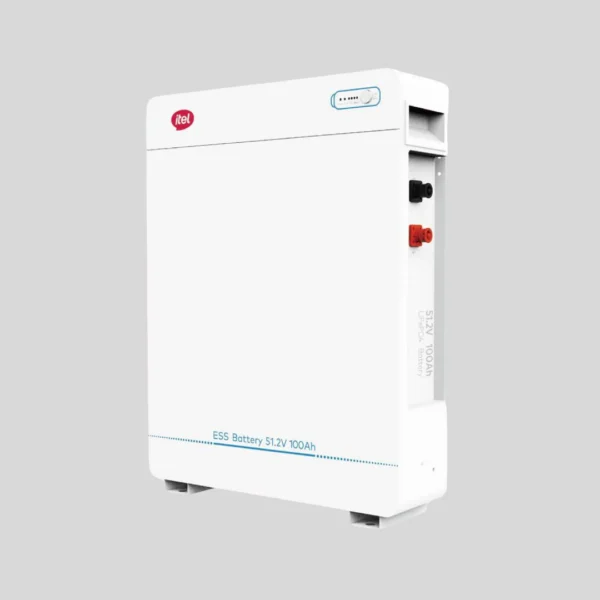

Itel IPL-51100 LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh – IP20
Original price was: ₨ 245,000.₨ 224,999Current price is: ₨ 224,999.
Itel IPL-51100 LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh
The IPL-51100 is a high-performance lithium iron phosphate (LiFePO₄) battery designed for solar energy storage systems. With a nominal voltage of 51.2V and 5.12kWh energy capacity, it offers reliable power backup for residential, commercial, and industrial applications. It features a robust build, long cycle life, and smart communication options for seamless system integration.
Key Features
-
High Energy Storage: 100Ah capacity with 5.12kWh of energy, perfect for demanding energy storage needs.
-
Safe & Reliable Chemistry: LiFePO₄ technology offers superior thermal and chemical stability for enhanced safety.
-
Smart Communication: Integrated RS485, CAN, and RS232 ports ensure easy communication with inverters and BMS systems.
-
Heavy-Duty Discharge Support: Delivers 100A continuous and 150A pulse discharge to handle high-demand loads.
-
Long Cycle Life: Offers over 6000 cycles with 10 years of design life under recommended usage conditions.
-
Expandable System: Can be connected in parallel with up to 15 batteries for scalable storage solutions.
-
Durable Construction: Sturdy metal casing with natural cooling and IP20 protection for dependable performance.
-
Built-in Protection Features: Includes current limiting, precharge, and intelligent voltage cut-offs to protect the battery and connected systems.
Specifications Table
| Specification | IPL-51100 |
|---|---|
| Battery Type | LiFePO₄ |
| Nominal Voltage | 51.2V |
| Nominal Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Operating Voltage Range | 40V–58.4V |
| Standard Charging Current | 50A |
| Maximum Continuous Charge Current | 100A |
| Cut-Off Charging Voltage | 58.4V |
| Cut-Off Charging Current | 2A |
| Standard Discharging Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Pulse Discharge Current | 150A |
| Cut-Off Discharge Voltage | 40V |
| Cut-Off Discharge Current | 2A |
| Dimensions (D × W × H) | 450 × 510 × 153 mm |
| Weight | 50 kg |
| Communication Port | RS485 / CAN / RS232 |
| Parallel Connection Support | Up to 15 Units |
| Working Temperature (Charging) | 0°C to 55°C |
| Working Temperature (Discharging) | -20°C to 60°C |
| Ingress Protection Rating | IP20 |
| Cooling Type | Natural Cooling |
| Operating Humidity | 10% to 95% |
| Maximum Altitude | 2000 meters |
| Shell Material | Metal |
| Current Limiting Function | 10A |
| Precharge Function | Enabled |
| Display Type | LED |
| Design Life | 10 Years |
| Cycle Life | >6000 Cycles @25°C, 0.5C, 80%DOD |
| Certifications | IEC62619 / UN38.3 / MSDS / DGM |
