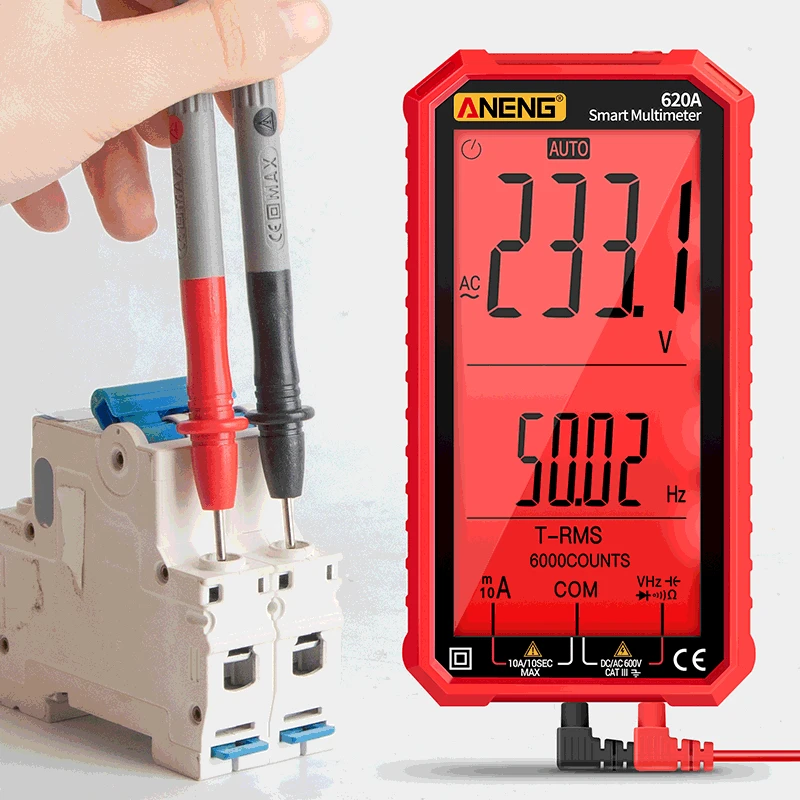

ANENG 620A Digital Smart Multimeter Transistor Testers 6000 Counts True RMS Auto Electrical Capacitance Meter Temp Resistance

Original price was: ₨ 7,500.Current price is: ₨ 5,500.

Compare

Description
Reviews (0)

Dispaly: LCD
Max. display value:6000 digit
Automatic shut down time:15 minutes
power supply:2*1.5V AAA Battery (Without)
The instrument specifies one year as a cycle, and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.

Specification:

Function	Range	Accuracy
AC Current	6000mA/10A	+-(1.0%reading+8 digits)
DC Current	6000mA/10A	+-(1.0%reading+5 digits)
DC Voltage	6V/60V/600V	+-(0.5%reading+3 digits)
AC Voltage	6V/60V/600V	+-(0.8%reading+5 digits)
Line on-off Test	—	1Ω
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	+-(0.8%reading+3 digits)
Diode Test	—	1V
Capacitor	6nF	+-(10%reading+40 digits)
	60nF/6uF/60uF/600uF/6mF/60mF	+-(2.5%reading+20 digits)
Temperature	-40~1000℃	+-(1%reading+3℃)
	-40~1832℉	+-(1%reading+3 ℉ )
Frequency	100Hz/1000Hz	+-(1.0%reading+5 digits)
	100Hz/1000Hz	+-(1.0%reading+5 digits)
